5 axis cnc machine price is a crucial factor to consider when investing in a cutting-edge machining technology. The cost of a 5-axis CNC machine can range from tens of thousands to hundreds of thousands of dollars, depending on various factors such as size, complexity, and precision.
In this article, we will delve into the world of 5-axis CNC machines, exploring their types, key features, and price factors to help you make an informed decision. Whether you’re a seasoned manufacturer or a newcomer to the industry, understanding the intricacies of 5-axis CNC machines can make all the difference in your business.
Definition and Overview of 5 Axis CNC Machines

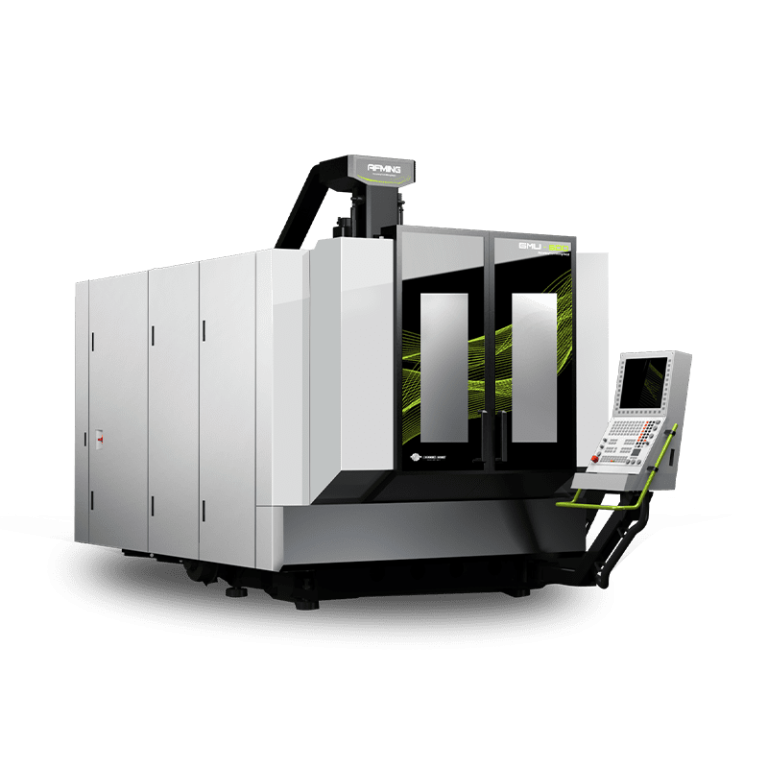

A 5-axis CNC machine is a type of computer numerical control (CNC) machine that utilizes five independent axes of motion to machine complex shapes and surfaces. This advanced technology enables the precise cutting and shaping of various materials, including metals, plastics, and composites. Unlike 2-axis, 3-axis, and 4-axis CNC machines, 5-axis CNC machines can move in three linear axes (X, Y, and Z) and two rotational axes (A and B), allowing for greater flexibility and accuracy in machining processes.
Differences Between 2-axis, 3-axis, and 4-axis CNC Machines
The primary distinction between 2-axis, 3-axis, and 4-axis CNC machines lies in their ability to move and manipulate the cutting tool. A 2-axis CNC machine can move in two directions, typically perpendicular to each other, resulting in a flat or two-dimensional surface. 3-axis machines, on the other hand, can move in three linear axes, allowing for more complex shapes and surfaces. 4-axis machines can move in four axes, including the two rotational axes, enabling faster machining processes and more accurate results. 5-axis CNC machines, with their five independent axes, offer unparalleled precision and flexibility in machining complex shapes and surfaces.
Examples of Industries That Utilize 5-axis CNC Machines
Several industries have benefited from the adoption of 5-axis CNC machines, including:
-
Aerospace Industry
The aerospace industry requires the creation of complex geometries and surfaces, making 5-axis CNC machines an essential tool for manufacturers. These machines enable the production of components with high precision and accuracy, which is critical for ensuring the performance and safety of aircraft.
-
Machinery and Equipment Manufacturing
The machinery and equipment manufacturing industry also utilizes 5-axis CNC machines to produce complex shapes and surfaces. These machines enable manufacturers to create custom parts and components with high precision and efficiency, reducing production time and costs.
-
Racing and Automotive Industries
The racing and automotive industries have also adopted 5-axis CNC machines to produce complex components, such as engine parts and brake components. These machines enable manufacturers to create precise and accurate parts, which is critical for ensuring the performance and safety of vehicles.
Types of 5 Axis CNC Machines
The 5-axis CNC machines can be broadly classified into three main categories, each with its unique design and functionality. Understanding the characteristics of each type is essential in selecting the right machine for specific industrial applications. This section provides an overview of the most common types of 5-axis CNC machines.
Horizontal 5 Axis CNC Machine, 5 axis cnc machine price
A horizontal 5-axis CNC machine is designed with a horizontal spindle that can move in the X, Y, Z, A, and B axes. This configuration allows for machining operations on complex parts with multiple surfaces. The horizontal 5-axis CNC machines are widely used in aerospace and automotive industries for producing turbine blades, engine components, and gearboxes.
The horizontal 5-axis CNC machines offer several advantages, including:
- Improved surface finish and accuracy
- Increased productivity through reduced setup times
- Enhanced machining flexibility
Vertical 5 Axis CNC Machine
A vertical 5-axis CNC machine features a vertical spindle that can move in the X, Y, Z, A, and B axes. This configuration is commonly used for machining large and heavy parts, such as engine blocks and gearboxes. The vertical 5-axis CNC machines are widely used in various industries, including aerospace, automotive, and oil and gas.
The vertical 5-axis CNC machines offer several advantages, including:
- Improved accessibility for machining complex parts
- Increased rigidity and stability
- Enhanced machining speed and accuracy
Universal 5 Axis CNC Machine
A universal 5-axis CNC machine combines the features of horizontal and vertical 5-axis CNC machines. This configuration allows for machining operations on complex parts with multiple surfaces and angles. The universal 5-axis CNC machines are widely used in various industries, including aerospace, automotive, and medical.
The universal 5-axis CNC machines offer several advantages, including:
- Improved machining flexibility and versatility
- Increased productivity through reduced setup times
- Enhanced surface finish and accuracy
Mill-Turn 5 Axis CNC Machine
A mill-turn 5-axis CNC machine is designed for machining complex parts with multiple surfaces and angles. This configuration combines the features of milling and turning operations in a single machine. The mill-turn 5-axis CNC machines are widely used in various industries, including aerospace, automotive, and medical.
The mill-turn 5-axis CNC machines offer several advantages, including:
- Improved machining flexibility and versatility
- Increased productivity through reduced setup times
- Enhanced surface finish and accuracy
5 Axis CNC Machine Price Factors
The price of a 5-axis CNC machine is determined by several key factors that influence the costs associated with its purchase, operation, and maintenance. These factors are essential to consider when evaluating the overall expense of a 5-axis CNC machine.
Determining Factors for 5-Axis CNC Machine Price
The cost of a 5-axis CNC machine is directly influenced by several critical factors, including:
- Size
- Complexity
- Precision
- Brand
- Components and features (e.g., spindle motor, driveshaft, bearing, or control systems)
- Quality of materials and construction
- Frequency of maintenance
- Traffic and workload
- Level of wear and tear
- Component availability and quality
- Repair and replacement costs
- Increased efficiency and productivity
- Improved accuracy and quality of work
- Reduced material waste and scrap
- Extended machine lifespan
- Opportunity costs and potential returns on investment
- Training and operator costs
- Utility and energy expenses
- Facility and equipment upgrades
- Software and programming costs
- Warranty and support costs
- In the aerospace industry, the use of 5-axis CNC machines can result in a ROI of up to 300% due to increased precision and reduced material waste.
- In the automotive industry, the ROI can range from 150% to 250% due to improved efficiency and productivity.
- In the medical device industry, the ROI can reach up to 400% due to the ability to produce complex shapes with high precision.
- In other industries, such as die-molding and mold-making, the ROI can range from 100% to 200% due to improved efficiency and reduced production time.
- Example 1: A leading aerospace manufacturer reported a 25% reduction in production time and a 15% reduction in material waste after integrating 5-axis CNC machines.
- Example 2: A major automotive manufacturer reduced its production costs by 12% and increased its output by 18% after implementing 5-axis CNC machines.
- Example 3: A medical device manufacturer achieved a 20% increase in productivity and a 10% reduction in production costs after integrating 5-axis CNC machines.
- Increased precision: 5-axis CNC machines can produce parts with tighter tolerances and improved surface finish, reducing the risk of errors and rework.
- Improved material utilization: By allowing for complex geometries and multiple features on a single part, 5-axis CNC machines optimize material usage, reducing waste and saving costs.
- Faster production times: These machines enable the production of multiple parts simultaneously, significantly reducing production times and increasing throughput.
- Customization and adaptability: 5-axis CNC machines offer greater flexibility in terms of design complexity and customization, enabling the production of unique and specialized parts.
- Improved part quality: 5-axis CNC machines produce parts with improved surface finish and tighter tolerances, reducing the risk of errors and rework.
- Increased production efficiency: These machines enable the production of multiple parts simultaneously, significantly reducing production times and increasing throughput.
- Customization and adaptability: 5-axis CNC machines offer greater flexibility in terms of design complexity and customization, enabling the production of unique and specialized parts.
- Faster new product introduction: With 5-axis CNC machines, manufacturers can rapidly produce complex prototypes and series production parts, reducing time to market.
- Improved part quality: 5-axis CNC machines produce parts with improved surface finish and tighter tolerances, reducing the risk of errors and rework.
- Increased production efficiency: These machines enable the production of multiple parts simultaneously, significantly reducing production times and increasing throughput.
- Customization and adaptability: 5-axis CNC machines offer greater flexibility in terms of design complexity and customization, enabling the production of unique and specialized parts.
- Faster new product introduction: With 5-axis CNC machines, manufacturers can rapidly produce complex prototypes and series production parts, reducing time to market.
- Using high-strength materials such as aluminum alloys or steel to construct the machine’s frame.
- Implementing a rigid and stable base plate to minimize vibrations and misalignments.
- Using precision ball bearings or linear guides to ensure smooth and accurate movements.
- Employing advanced simulation tools to predict and mitigate the effects of thermal expansion on the machine’s performance.
- Using high-performance cooling fluids or gases to dissipate heat generated by the machine’s motors and other components.
- Implementing a robust cooling system that can maintain a stable temperature even in extreme environmental conditions.
- Employing advanced sensors and control systems to monitor temperature fluctuations and adjust the cooling system accordingly.
- Using durable and corrosion-resistant materials such as stainless steel or aluminum alloys for the machine’s frame and components.
- Applying a high-quality finish such as electroplating or anodizing to protect the machine’s surface from corrosion and wear.
- Ensuring that the machine’s components are precision-machined and assembled to minimize wear and ensure accurate movement.
- The use of advanced simulation tools to design and optimize the machine’s kinematic structure and thermal behavior.
- The implementation of advanced control systems that integrate sensor data and machine learning algorithms to optimize the machine’s performance in real-time.
- The development of compact and high-performance servo motors that minimize energy consumption and reduce the machine’s environmental footprint.
- Check and replace worn-out or damaged electrical connectors and wires.
- Inspect and clean hydraulic lines for any blockages or damage.
- Clean and inspect lubrication systems to ensure proper function.
- Purge the machine’s cooling system to remove any debris or contaminants.
- Thorough knowledge of machine mechanics, including gearboxes, motors, and bearings.
- Understanding of electrical systems, including control panels, wiring, and circuit boards.
- Familiarity with cutting technology, including cutting tool geometry and material properties.
- Ability to read and interpret technical documentation, including manuals and schematics.
In general, 5-axis CNC machines with higher precision, larger size, and more advanced features tend to be more expensive.
Cost of Maintenance, Repair, and Replacement of Components
The cost of maintaining, repairing, and replacing components of a 5-axis CNC machine can also significantly impact the overall price. Factors influencing these costs include:
Regular maintenance can help prevent costly repairs and extend the life of the machine.
Trade-offs Between Initial Investment and Long-term Savings
While a 5-axis CNC machine may require a significant initial investment, its long-term benefits can lead to substantial cost savings. Factors to consider include:
By evaluating the long-term benefits and potential savings, manufacturers can determine whether the initial investment is justified.
Additional Costs to Consider
Other expenses and considerations for 5-axis CNC machine ownership include:
It is essential to account for these additional expenses when budgeting for a 5-axis CNC machine.
Cost-Benefit Analysis of 5 Axis CNC Machines
In the context of manufacturing, the integration of 5-axis CNC machines often involves a significant upfront investment. However, the potential returns on investment (ROI) can be substantial, making it an attractive option for industries seeking to improve efficiency and productivity.
The cost-benefit analysis of 5-axis CNC machines requires a comprehensive evaluation of initial investment costs against potential returns. In different industries, the ROI of these machines can vary significantly. For instance, in aerospace manufacturing, the use of 5-axis CNC machines can result in significant cost savings due to reduced material waste and increased precision.
Comparative Evaluation of Return on Investment (ROI)
A comparative evaluation of ROI in various industries can provide valuable insights into the effectiveness of 5-axis CNC machines.
Examples of Successful Integration
Numerous companies have successfully integrated 5-axis CNC machines into their production process, resulting in significant cost savings and improved efficiency.
Role of Technology Advancements
Advancements in technology have significantly reduced the costs associated with 5-axis CNC machines. Improved machine design, advanced software, and increased automation have made these machines more accessible and affordable for manufacturers.
According to a study by the National Institute of Standards and Technology, the cost of 5-axis CNC machines has decreased by 30% over the past decade due to advancements in technology.
Comparative Analysis of 5 Axis CNC Machines from Different Brands
In this comparative analysis, we will examine the features, prices, and specifications of 5-axis CNC machines from well-known brands. This will enable users to make an informed decision when purchasing a 5-axis CNC machine.
### Brands and Models Overview
The following table compares the features, prices, and specifications of 5-axis CNC machines from four well-known brands: Makino, Mazak, DMG Mori, and Haas.
| brand | model | price | features | specifications |
|---|---|---|---|---|
| Makino | A51 | $250,000-$300,000 | Spindle speed: 12,000 RPM, Table size: 49″ x 49″ | Spindle motor power: 50 HP, Axis travel: X, Y, Z: 36″ x 36″ x 27″ |
| Mazak | VT-150 | $200,000-$250,000 | Spindle speed: 12,000 RPM, Table size: 39.37″ x 39.37″ | Spindle motor power: 30 HP, Axis travel: X, Y, Z: 28.74″ x 28.74″ x 20.47″ |
| DMG Mori | NTX 1000 | $180,000-$220,000 | Spindle speed: 12,000 RPM, Table size: 35.43″ x 35.43″ | Spindle motor power: 25 HP, Axis travel: X, Y, Z: 26.77″ x 26.77″ x 19.02″ |
| Haas | VM-5 | $150,000-$190,000 | Spindle speed: 12,000 RPM, Table size: 31.5″ x 31.5″ | Spindle motor power: 25 HP, Axis travel: X, Y, Z: 24.8″ x 24.8″ x 15.75″ |
Common Applications and Industries for 5 Axis CNC Machines
5-axis CNC machines have revolutionized the manufacturing industry by providing unparalleled precision, flexibility, and efficiency in producing complex components and parts. These machines have become an indispensable tool in various industries, including aerospace, automotive, medical devices, and many more. In this section, we will explore the typical applications of 5-axis CNC machines in these industries and highlight the benefits they bring to each sector.
Aerospace Industry
The aerospace industry has been at the forefront of adopting 5-axis CNC machines due to their intricate components and tight tolerances. These machines enable the production of complex parts such as aerospace engine components, fuel tanks, and satellite components. The benefits of using 5-axis CNC machines in the aerospace industry include:
A notable example of a company utilizing 5-axis CNC machines in their aerospace production is Boeing. Boeing has implemented 5-axis CNC machines in their production line to produce complex engine components, such as blisks (bladed disks). These machines have enabled Boeing to produce parts with tighter tolerances and improved surface finish, reducing the risk of errors and rework.
Automotive Industry
The automotive industry has also benefited significantly from the introduction of 5-axis CNC machines. These machines have enabled the production of complex components such as engine blocks, crankshafts, and gearboxes. The benefits of using 5-axis CNC machines in the automotive industry include:
A notable example of a company utilizing 5-axis CNC machines in their automotive production is Ferrari. Ferrari has implemented 5-axis CNC machines in their production line to produce complex engine components, such as crankshafts and camshafts. These machines have enabled Ferrari to produce parts with tighter tolerances and improved surface finish, reducing the risk of errors and rework.
Medical Devices Industry
The medical devices industry has also benefited from the introduction of 5-axis CNC machines. These machines have enabled the production of complex components such as surgical instruments, implants, and dental implants. The benefits of using 5-axis CNC machines in the medical devices industry include:
A notable example of a company utilizing 5-axis CNC machines in their medical devices production is Zimmer Biomet. Zimmer Biomet has implemented 5-axis CNC machines in their production line to produce complex orthopedic implants, such as hip and knee replacements. These machines have enabled Zimmer Biomet to produce parts with tighter tolerances and improved surface finish, reducing the risk of errors and rework.
“The use of 5-axis CNC machines in our production process has significantly improved the quality and efficiency of our products. We can now produce complex components with tighter tolerances and improved surface finish, reducing the risk of errors and rework.”
Zimmer Biomet spokesperson
Design Considerations for 5 Axis CNC Machines: 5 Axis Cnc Machine Price
The design and manufacturing of 5-axis CNC machines are crucial aspects that directly impact their performance, efficiency, and overall value to manufacturers. Several factors need to be considered by designers and manufacturers to ensure the structural integrity, thermal stability, and optimal performance of these machines. Here, we discuss some of the key design considerations and innovative solutions that have been implemented in the industry.
Structural Integrity and Mechanical Robustness
The mechanical robustness of a 5-axis CNC machine is critical to ensure that it can withstand the stresses and strains of repeated use over an extended period. Structural integrity issues can arise from various factors such as vibrations, misalignments, and thermal expansion, which can cause the machine to malfunction, reducing its accuracy and lifespan.
A robust structural design ensures that the machine can withstand these stresses and continues to operate efficiently. Key considerations in designing a robust structure include:
Thermal Stabilization and Cooling Systems
Thermal stabilization is critical in 5-axis CNC machines, especially those operating at high speeds or in applications involving high heat generation. Temperature variations can cause the machine to malfunction, resulting in decreased accuracy and productivity.
Thermal stabilization is achieved through the implementation of advanced cooling systems that are designed to minimize temperature fluctuations. Key considerations in designing thermal stabilization systems include:
Material Selection and Finishing
The selection of materials and finishes is critical in 5-axis CNC machines to ensure optimal performance and longevity. Key considerations in selecting materials and finishes include:
Advanced Design Solutions and Innovations
Recent advances in design and manufacturing techniques have led to the development of innovative 5-axis CNC machines that offer improved performance, efficiency, and accuracy. Some of the notable innovations include:
Maintenance and Repair of 5 Axis CNC Machines
To ensure optimal performance and extend the lifespan of 5-axis CNC machines, regular maintenance is essential. This involves not only routine checks but also thorough inspections, cleaning, and upgrading of components as needed. In this section, we will discuss the best practices for maintaining 5-axis CNC machines, common issues that may arise during operation, and the necessary skills and training for repair technicians.
Regular Maintenance Checks
Maintenance checks should be performed on a regular basis, ideally every 100-200 hours of operation. This includes checking the machine’s electrical connections, hydraulic lines, and lubrication systems. Regular cleaning of the machine’s surface and components is also essential to prevent dust accumulation and ensure proper airflow.
Common Issues and Solutions
Although 5-axis CNC machines are designed to be highly reliable, issues can still arise during operation. Some common problems include machine vibration, inaccurate cutting, and electrical malfunctions.
| Issue | Description | Solution |
|---|---|---|
| Machine Vibration | Vibration can lead to inaccurate cutting and damage to the machine. | Check and adjust the machine’s leveling and alignment. Inspect and replace worn-out or damaged vibration-damping components. |
| Inaccurate Cutting | Inaccurate cutting can result in poor product quality and reduced machine lifespan. | Check and adjust the machine’s tool offset and positioning. Inspect and replace worn-out or damaged cutting tools. |
| Electrical Malfunctions | Electrical malfunctions can lead to machine shutdown and costly repairs. | Check and replace worn-out or damaged electrical components. Inspect and clean electrical connections. |
Necessary Skills and Training for Repair Technicians
Repairing 5-axis CNC machines requires specialized knowledge and skills. Repair technicians should have a strong understanding of machine mechanics, electrical systems, and cutting technology.
Summary
In conclusion, 5-axis CNC machines are a vital investment for industries seeking to increase efficiency, precision, and productivity. By considering the factors discussed above, you can make an informed decision when choosing the right 5-axis CNC machine for your needs. Remember, it’s not just about the initial price; it’s about the long-term benefits and returns on investment that come with owning a state-of-the-art machining technology.
FAQ Resource
What is the average lifespan of a 5-axis CNC machine?
The average lifespan of a 5-axis CNC machine is around 10-15 years, depending on maintenance, usage, and quality of the machine.
Can I upgrade my existing CNC machine to a 5-axis CNC machine?
Yes, it’s possible to upgrade your existing CNC machine to a 5-axis CNC machine, but it depends on the make and model of your current machine. Contact the manufacturer for more information.
How do I choose the right 5-axis CNC machine for my business?
When choosing a 5-axis CNC machine, consider factors such as your business needs, budget, and the type of materials you work with. It’s recommended to consult with a sales representative or a industry expert for personalized advice.
Can I rent or lease a 5-axis CNC machine instead of buying one?
Yes, it’s possible to rent or lease a 5-axis CNC machine, but it may come with additional costs and limitations. It’s essential to carefully review the terms and conditions before making a decision.
What are the maintenance costs associated with a 5-axis CNC machine?
Maintenance costs for a 5-axis CNC machine can range from 5-15% of the machine’s purchase price per year, depending on usage and quality of the machine.
