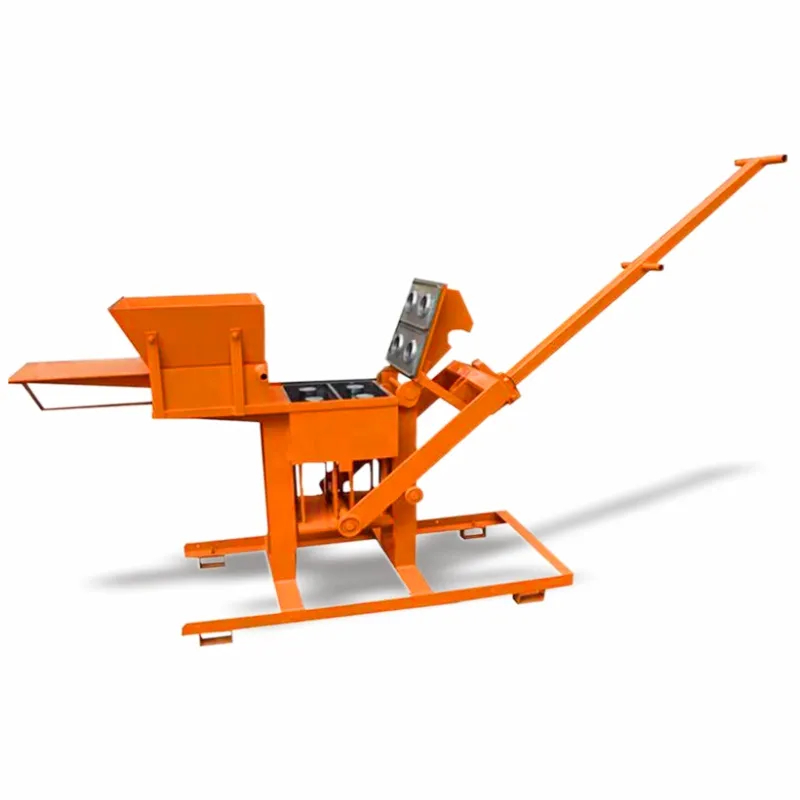

Clay brick making machine, the backbone of modern construction, has revolutionized the way we build, offering unparalleled efficiency, productivity, and precision. Its introduction has marked a significant turning point in the history of the construction industry, bringing with it unprecedented benefits that have left traditional methods in the dust.
So, what does this ingenious machine entail? A clay brick making machine encompasses a complex array of mechanical components that work in harmony to produce top-notch bricks within a remarkably short timeframe. Be it manual, semi-automatic, or fully-automatic clay brick making machines, each variant offers its unique set of features and functionalities.
Types of Clay Used in Clay Brick Making Machine
The type of clay used in a clay brick making machine plays a crucial role in determining the quality and durability of the final product. Different types of clay offer unique characteristics that can affect the color, texture, and strength of the bricks. Selecting the right type of clay for a specific machine requires an understanding of the properties and behavior of various clays.
There are several types of clay suitable for clay brick making machines, each with its own set of characteristics and advantages.
Eearthenware Clay
Eearthenware clay is one of the most commonly used types of clay in clay brick making machines. It is a coarse, porous clay that is easy to work with and has a high firing temperature range. Eearthenware clay is often used to produce decorative and functional items, such as tiles, pots, and planters.
Characteristics of Eearthenware Clay:
– Coarse and porous texture
– High firing temperature range (1200-1400°C)
– Easy to work with
– Often used for decorative and functional items
Stoneware Clay
Stoneware clay is a finer, more dense clay than eearthenware clay. It has a higher firing temperature range and is often used to produce functional items, such as plates, bowls, and cups. Stoneware clay is also resistant to scratches and stains.
Characteristics of Stoneware Clay:
– Fine and dense texture
– High firing temperature range (1200-1400°C)
– Resistant to scratches and stains
– Often used for functional items
Ball Clay
Ball clay is a type of clay that is used to add strength and durability to ceramic products. It is a fine, plastic clay that is easy to work with and has a high firing temperature range. Ball clay is often used to produce high-quality ceramic products, such as fine china and porcelain.
Characteristics of Ball Clay:
– Fine and plastic texture
– High firing temperature range (1200-1400°C)
– Adds strength and durability to ceramic products
– Often used to produce high-quality ceramic products
Fire Clay
Fire clay is a type of clay that is used to produce refractory products, such as bricks, tiles, and insulation. It has a high firing temperature range and is resistant to heat and chemical corrosion. Fire clay is often used in high-temperature applications, such as furnaces and kilns.
Characteristics of Fire Clay:
– High firing temperature range (1400-1600°C)
– Resistant to heat and chemical corrosion
– Often used in high-temperature applications
– Can be used to produce refractory products
Talc Clay
Talc clay is a type of clay that is used to produce ceramics, pottery, and other decorative items. It has a soft, powdery texture and is often used to create intricate designs and patterns. Talc clay is also resistant to scratches and stains.
Characteristics of Talc Clay:
– Soft and powdery texture
– Often used to create intricate designs and patterns
– Resistant to scratches and stains
– Can be used to produce ceramics, pottery, and other decorative items
When selecting the right type of clay for a clay brick making machine, it is essential to consider the desired properties and characteristics of the final product. By choosing the right type of clay, manufacturers can produce high-quality bricks that meet specific requirements and standards.
Safety Precautions and Regulations for Clay Brick Making Machine
Operating a clay brick making machine requires a high level of attention to safety protocols to prevent accidents, injuries, and damage to the equipment. Adhering to established safety guidelines and regulations not only ensures a secure work environment but also aids in maintaining the machine’s optimal performance and extending its lifespan.
Potential Hazards and Prevention Techniques
When operating a clay brick making machine, various potential hazards can arise, including physical injuries, equipment malfunctions, and environmental contamination. The following points elaborate on these hazards and their prevention techniques.
- Physical Hazards: Workers are exposed to risks such as crushing injuries, cuts, and burns when operating the machine. To mitigate these risks, workers should receive comprehensive training on machine operation, wearing personal protective equipment (PPE), and ensuring the work area is clear of debris.
- Equipment Malfunctions: Machine breakdowns or malfunctions can result in downtime, financial losses, and potential harm to workers. Regular maintenance, inspections, and timely repair of faulty components can prevent these issues.
- Environmental Contamination: Clay brick making machines can emit pollutants and byproducts that contribute to environmental degradation. Proper waste management, adherence to environmental regulations, and implementing eco-friendly practices can reduce the machine’s ecological footprint.
Regulatory Requirements and Industry Standards
Manufacturers, operators, and users of clay brick making machines are subject to various regulatory requirements and industry standards that ensure safety, quality, and environmental stewardship.
- OSHA Guidelines (USA): The Occupational Safety and Health Administration (OSHA) provides guidelines and regulations for machine safety, employee protection, and hazard mitigation.
- EU Machinery Directive (EU): The EU Machinery Directive sets strict standards for machine design, labeling, and user instructions to ensure safe and efficient operation.
- ISO 9001 Quality Management (Global): This international standard for quality management emphasizes the importance of maintaining consistent quality, customer satisfaction, and environmental responsibility.
Industry Best Practices
Establishing and adhering to industry best practices for clay brick making machines is crucial for ensuring safety, quality, and environmental sustainability.
- Operator Training: Providing comprehensive training to operators on machine operation, maintenance, and safety protocols is essential for mitigating risks and preventing accidents.
- Regular Maintenance: Regular maintenance and inspections help prevent equipment breakdowns, extend the machine’s lifespan, and ensure optimal performance.
- Quality Control: Implementing quality control measures, such as material testing and product inspection, helps produce high-quality bricks and reduces waste.
Designing a Clay Brick Making Machine
When designing a clay brick making machine, several factors come into play that determine its overall performance, efficiency, and cost-effectiveness. These factors include production capacity, space constraints, material type, and energy requirements. The design of a clay brick making machine should be tailored to meet the specific needs of the user, taking into account the intended applications and environmental conditions.
Key Factors to Consider
When designing a clay brick making machine, the following factors need to be carefully considered:
- Production Capacity: The machine’s ability to produce a consistent number of bricks within a given timeframe is crucial. Factors such as mold design, pressing force, and firing duration influence production capacity.
- Space Constraints: The machine’s dimensions, portability, and ease of installation are vital considerations for sites with limited space or tight deadlines.
- Material Type: Different types of clay require specific processing conditions, such as temperature, moisture, and pressure. The machine’s design should accommodate these requirements.
- Energy Requirements: The machine’s energy consumption affects operating costs and environmental sustainability. Factors such as electricity, fuel, and water usage need to be optimized.
- Maintenance and Repair: The machine’s design should facilitate easy maintenance and repair, reducing downtime and extending its lifespan.
- Scalability and Modular Design: A machine designed for easy scalability and modularity can adapt to changing production demands, minimize waste, and reduce costs.
Design Options and Considerations
A well-designed clay brick making machine should incorporate the following design options and considerations:
- Modular Design: A modular design allows for easy assembly, disassembly, and reconfiguration, making it ideal for small-scale or low-volume production. It also enables quick replacement of worn-out parts and reduces repair times.
- Portable Design: A portable design is essential for sites with limited space or for producers who need to move equipment between locations. It reduces installation and transportation costs, making it suitable for small-scale or mobile production.
- Automated Systems: Automated systems, such as programmable logic controllers (PLCs), can optimize machine performance, increase production efficiency, and reduce labor costs.
- Safety Features: Incorporating safety features, such as emergency stops, safety guards, and fire suppression systems, ensures a safe working environment and reduces the risk of accidents.
Example of a Well-Designed Clay Brick Making Machine
A well-designed clay brick making machine should incorporate a combination of the factors and considerations discussed above. For instance, the Apollo clay brick making machine, developed by a leading manufacturer in the industry, features a modular design with automated systems and safety features. This machine is capable of producing up to 4,000 bricks per day, with a maximum firing temperature of 1,200°C. It also has a compact footprint, making it ideal for small-scale or low-volume production sites. The Apollo machine is designed for ease of maintenance, repair, and installation, minimizing downtime and extending its lifespan.
Design Specifications:
– Production Capacity: up to 4,000 bricks per day
– Firing Temperature: up to 1,200°C
– Power Consumption: 25 kW
– Dimensions: 2.5 x 1.8 x 1.2 meters (L x W x H)
– Weight: 1.5 tons
– Material: High-strength steel
– Safety Features: Emergency stop, safety guards, fire suppression system
– Operating Mode: Automatic or manual
The Apollo clay brick making machine is a prime example of a well-designed clay brick making machine that meets the specific needs of small-scale or low-volume producers while providing high-quality, efficient, and safe operation.
Troubleshooting Common Issues in Clay Brick Making Machine
When operating a clay brick making machine, it is not uncommon to encounter various issues that can affect production efficiency and quality. Understanding these common problems and their troubleshooting techniques can help minimize downtime and ensure smooth operation. This section will focus on identifying and resolving common issues encountered in clay brick making machines.
Clay Material Defects, Clay brick making machine
Clay material defects can significantly impact the quality of bricks produced. These defects may arise from either the quality of the clay or improper mixing and handling procedures. Common clay material defects include:
- Mechanical defects: Such as excessive moisture, inconsistent particle size, or contamination with debris and impurities.
- Chemical defects: Such as variations in pH levels, high salt content, or the presence of substances that can affect the plasticity and workability of the clay.
Troubleshooting clay material defects involves identifying the root cause of the issue. This may involve inspecting the clay for mechanical defects, such as particle size and moisture content, or analyzing the chemical composition of the clay for pH levels and salt content. Once the root cause is identified, appropriate measures can be taken to resolve the issue, such as adjusting mixing procedures or sourcing high-quality clay materials.
Equipment Failure
Equipment failure can be a costly and time-consuming issue for clay brick making machines. Common equipment failures include:
- Mechanical failure: Such as bearing failure, gear damage, or misalignment of moving parts.
Troubleshooting equipment failure involves identifying the root cause of the issue. This may involve inspecting the machine for signs of mechanical wear and tear, such as bearing failure or gear damage, or checking electrical connections for signs of short circuits or blown fuses. Once the root cause is identified, appropriate repairs can be made to restore the machine to operational condition.
Maintenance and Upkeep
Regular maintenance and upkeep can help prevent common issues with clay brick making machines. This includes:
| Task | Description |
|---|---|
| Cleaning the machine | Regularly cleaning the machine and its components, such as the mold, die, and conveyor system, to prevent the buildup of residue and debris. |
| Lubricating moving parts | Regularly lubricating moving parts, such as bearings and gears, to prevent wear and tear. |
| Inspecting electrical connections | Regularly inspecting electrical connections for signs of wear and tear, such as frayed wires or loose connections. |
By following these maintenance and upkeep tasks, operators can help prevent common issues with clay brick making machines and maintain optimal production efficiency and quality.
Operator Error
Operator error can be a significant contributing factor to common issues with clay brick making machines. This may include:
- Incorrect loading of clay into the machine.
- Incorrect setting of machine parameters, such as temperature and pressure.
- Failure to regularly maintain and inspect the machine.
To prevent operator error, it is essential to provide operators with comprehensive training on the operation and maintenance of the machine. This should include instruction on the proper loading of clay, setting of machine parameters, and regular maintenance and inspection procedures.
Safety Precautions
Safety precautions should be taken when operating clay brick making machines to prevent accidents and injuries. This includes:
- Wearing personal protective equipment, such as gloves and safety glasses.
- Ensuring proper ventilation in the operating area.
- Maintaining a clean and organized operating area to prevent tripping hazards and other safety risks.
By following these safety precautions, operators can help prevent accidents and injuries and maintain a safe and healthy working environment.
Maintenance and Repair of Clay Brick Making Machine
Regular maintenance and repair of a clay brick making machine are crucial to ensure its optimal performance, prolong its lifespan, and maintain productivity. A well-maintained machine reduces the risk of equipment failure, minimizes downtime, and lowers maintenance costs. It also helps to maintain the quality of the bricks produced, ensuring they meet the required specifications.
Importance of Regular Maintenance
Regular maintenance of a clay brick making machine involves a series of tasks that help to identify and address potential issues before they become major problems. This includes cleaning the machine, lubricating moving parts, inspecting wear and tear, and performing routine checks on electrical and mechanical systems. By adopting a regular maintenance schedule, you can:
– Reduce the risk of equipment failure
– Minimize downtime and production losses
– Lower maintenance costs
– Maintain the quality of bricks produced
– Extend the lifespan of the machine
Schedule for Routine Maintenance Tasks
To ensure the longevity and efficiency of a clay brick making machine, it is essential to adopt a regular maintenance schedule. This includes scheduling tasks that need to be performed on a daily, weekly, monthly, quarterly, and annual basis. The schedule should be tailored to meet the specific needs of your machine, taking into account the usage pattern and environmental conditions.
– Daily:
– Clean the machine thoroughly after each use
– Lubricate moving parts to prevent wear and tear
– Check for loose or damaged parts and replace them as needed
– Weekly:
– Inspect the machine for any signs of wear or damage
– Clean the machine’s external surfaces and components
– Check the electrical connections and wiring for any signs of wear or damage
– Monthly:
– Perform a deep clean of the machine’s internal components
– Inspect the machine’s mechanical systems, including gears, belts, and pulleys
– Check the machine’s hydraulic systems for any signs of leakage or damage
– Quarterly:
– Perform routine checks on the machine’s electrical systems
– Inspect the machine’s paint and coatings for any signs of wear or damage
– Check the machine’s safety features, including guards and emergency stops
– Annually:
– Perform a comprehensive overhaul of the machine’s mechanical systems
– Inspect the machine’s hydraulic systems for any signs of wear or damage
– Check the machine’s safety features, including guards and emergency stops
Procedures for Minor and Major Repairs
In addition to regular maintenance, a clay brick making machine may require minor and major repairs to maintain its optimal performance. Minor repairs involve replacing worn or damaged parts, such as seals, gaskets, or bearings, while major repairs involve more extensive work, such as replacing entire mechanical or electrical systems.
– Minor Repairs:
– Replace worn or damaged seals and gaskets
– Repair or replace bearings and other mechanical components
– Replace electrical components, such as fuses or circuit breakers
– Major Repairs:
– Replace entire mechanical systems, including gears, belts, and pulleys
– Replace hydraulic systems, including pumps and motors
– Replace electrical systems, including motors and control panels
When performing repairs, it is essential to consult the machine’s manual or contact the manufacturer for guidance. In addition, it is crucial to take necessary safety precautions, including wearing personal protective equipment (PPE) and following lockout/tagout procedures.
Environmental Impact of Clay Brick Making Machine
The clay brick making machine, while a vital tool for the construction industry, has a significant environmental impact. From material extraction to production and disposal, the machine’s operation generates waste, pollutants, and energy consumption, contributing to climate change and environmental degradation.
Understanding these effects is crucial for developing sustainable practices in the use of clay brick making machines. The impact of these machines on the environment encompasses resource depletion, greenhouse gas emissions, pollution, and environmental degradation.
Resource Depletion and Extraction
Clay brick making machines require significant amounts of raw materials, mostly clays and shales, which are extracted from quarries, mines, or natural deposits. This extraction process can lead to deforestation, habitat disruption, and the loss of valuable ecosystem resources. Furthermore, the extraction of clays and shales can cause soil erosion and land degradation, affecting local ecosystems and biodiversity.
Greenhouse Gas Emissions and Energy Consumption
The operation of clay brick making machines is energy-intensive, relying on fossil fuels or electricity to power the machinery. This energy consumption contributes to greenhouse gas emissions, mainly carbon dioxide, which accelerates climate change and its associated impacts, including rising temperatures and extreme weather events. Moreover, the production process involves kilns that burn fossil fuels, releasing large amounts of CO2 and other pollutants into the atmosphere.
Pollution and Environmental Degradation
Clay brick making machines also generate significant amounts of waste, including clay and stone waste, ash, and dust. This waste can pollute nearby environments and contribute to soil and air pollution. Additionally, the production process involves the use of chemicals, which can contaminate the environment if not handled properly.
Examples of Sustainable Practices
Several strategies can be implemented to minimize the environmental impact of clay brick making machines:
- Using raw materials from local, sustainable sources, which can reduce transportation-related emissions and support local economies.
- Implementing energy-efficient technologies, such as solar or biomass-powered kilns, to reduce greenhouse gas emissions.
- Implementing waste management systems to minimize waste generation and ensure proper disposal or reuse of waste materials.
Sustainable Operation and Maintenance
Adopting sustainable practices is essential for minimizing the environmental impact of clay brick making machines. Operators and manufacturers can work together to reduce energy consumption, minimize waste generation, and adopt environmentally friendly production methods. Regular maintenance and upgrading of equipment can also help reduce emissions and improve overall efficiency.
Certification and Compliance
Manufacturers and users of clay brick making machines can adopt environmental standards and certifications, such as ISO 14001, to demonstrate their commitment to sustainable practices. Compliance with regulatory requirements and industry standards can also help ensure the safe and environmentally friendly operation of these machines.
Reducing the environmental impact of clay brick making machines requires a collaborative effort from manufacturers, operators, and regulatory bodies.
Innovative Technologies
Innovative technologies, such as 3D printing and advanced automation, can help reduce waste and energy consumption in clay brick making. These technologies also enable the production of customized bricks with reduced material usage and waste.
Cost-Benefit Analysis of Clay Brick Making Machine
The cost-benefit analysis of a clay brick making machine is essential for determining its feasibility and potential return on investment. By analyzing the costs and benefits of purchasing and maintaining a clay brick making machine, manufacturers and entrepreneurs can make informed decisions about their investment.
Costs Associated with Purchasing and Maintaining a Clay Brick Making Machine
The costs associated with purchasing and maintaining a clay brick making machine can be broken down into several categories: initial investment, operational costs, and maintenance costs. The initial investment includes the cost of the machine, factory setup, and training for the operators. Operational costs include labor costs, raw material costs, fuel costs, and energy costs. Maintenance costs include repair and replacement costs, spare parts, and maintenance personnel.
- The initial investment for a clay brick making machine can range from $50,000 to $500,000, depending on the size and capacity of the machine.
- Operational costs can range from $10,000 to $50,000 per year, depending on the production volume and raw material costs.
- Maintenance costs can range from $5,000 to $20,000 per year, depending on the frequency of repairs and replacement of spare parts.
Benefits of Using a Clay Brick Making Machine
The benefits of using a clay brick making machine include increased productivity, improved quality of bricks, reduced labor costs, and increased efficiency. By automating the brick making process, manufacturers can produce a higher volume of bricks in a shorter amount of time, resulting in increased productivity.
- Increase in production volume: A clay brick making machine can produce up to 10,000 bricks per day, compared to manual production which can only produce up to 5,000 bricks per day.
- Improved quality of bricks: A clay brick making machine can produce bricks with a consistent quality and texture, reducing the chances of defects and irregularities.
- Reduced labor costs: A clay brick making machine can reduce labor costs by up to 50%, as the machine can operate with minimal labor input.
Comparative Analysis of Different Clay Brick Making Machines
Here is a comparative analysis of different clay brick making machines in terms of their costs and benefits:
“The choice of clay brick making machine should be based on the specific needs and requirements of the manufacturer, including production volume, budget, and desired level of automation.”
| Machine Type | Initial Investment | Operational Costs | Maintenance Costs | Production Volume | Quality of Bricks |
|---|---|---|---|---|---|
| Manual Machine | $10,000 | $5,000 | $2,000 | 5,000 bricks/day | Variable quality |
| Hydraulic Machine | $50,000 | $15,000 | $5,000 | 10,000 bricks/day | High quality |
| Automated Machine | $200,000 | $20,000 | $10,000 | 20,000 bricks/day | Consistent quality |
Outcome Summary
In conclusion, a clay brick making machine is much more than just an efficient brick-making solution – it’s a game-changer. As the construction industry continues to evolve, embracing innovative technologies like clay brick making machines will not only boost productivity but also help mitigate environmental concerns.
Question Bank
Q: What materials are used to make clay bricks?
A: Clay bricks are made from a mixture of clay and water, often with additives such as sand or shale. The exact composition may vary depending on the type of brick being produced.
Q: Can clay brick making machines be used for different clay types?
A: Yes, various types of clay, including earthenware, stoneware, and ball clay, can be used in clay brick making machines. Each type requires specific settings and processing parameters.
Q: What maintenance requirements do clay brick making machines have?
A: Regular maintenance, including cleaning, lubricating, and replacing worn-out parts, is crucial to ensure optimal performance and extend the lifespan of the machine.
