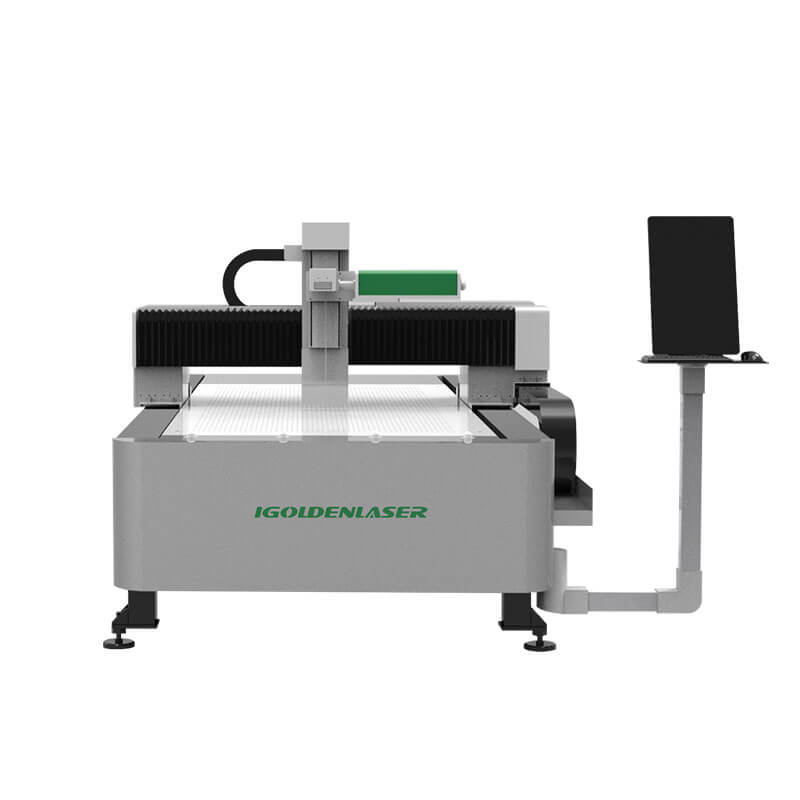

Kicking off with laser etching machine for metal, this cutting-edge technology has revolutionized the way we create intricate designs on metal surfaces, offering unparalleled precision and accuracy. By leveraging the power of laser technology, metal etching machine manufacturers have created machines that not only meet the demands of the industry but also pave the way for innovative product development.
The laser etching machine for metal uses a high-powered neodymium-doped yttrium aluminum garnet (Nd:YAG) laser, which is capable of engraving, marking, and cutting a wide range of metals, including stainless steel, aluminum, and copper. The technology boasts numerous benefits, including high precision, efficiency, and eco-friendliness. Furthermore, the machine’s advanced beam delivery system ensures a stable and consistent output, while the control panel provides real-time monitoring and control of the etching process.
Basics of Laser Etching Machines for Metal
Laser etching machines for metal have revolutionized the manufacturing industry by providing a precise, efficient, and cost-effective way to engrave, mark, and cut various metals. These machines utilize laser technology to remove or alter the surface of the metal, resulting in intricate designs, logos, and patterns.
Fundamental Principle behind Laser Etching Technology for Metal
The fundamental principle behind laser etching technology for metal involves the interaction between a high-powered laser beam and the metal surface. The laser beam is directed at the metal target, heating the surface to a point where it vaporizes or melts, creating a precise etching or engraving. This process is based on the principle of thermal ablation, where the laser energy is absorbed by the metal, causing the surface to vaporize or melt.
| Type of Laser | Description | Application | Advantages |
|---|---|---|---|
| Nd:YAG Laser | Neodymium-doped yttrium aluminum garnet laser | Engraving, marking, and cutting of metals | High-powered and efficient |
| Fibre Laser | Uses a fibre optic core as the gain medium | Cutting and engraving of metals, including stainless steel and aluminum | High precision and speed |
| CO2 Laser | Uses a carbon dioxide gas as the gain medium | Engraving and cutting of organic materials and plastics | Low cost and high accuracy |
Types of Lasers Used in Laser Etching Machines for Metal
There are several types of lasers used in laser etching machines for metal, each with its unique characteristics, advantages, and applications.
- Nd:YAG Laser
- Fibre Laser
- CO2 Laser
The Nd:YAG laser is a high-powered laser that uses a neodymium-doped yttrium aluminum garnet crystal as the gain medium. It is widely used in engraving, marking, and cutting of metals, including stainless steel, aluminum, and copper. The Nd:YAG laser has a high powered output, making it ideal for cutting and engraving thick metals.
The fibre laser uses a fibre optic core as the gain medium and is known for its high precision and speed. It is commonly used for cutting and engraving of metals, including stainless steel, aluminum, and titanium. The fibre laser has a high repetition rate, making it suitable for high-speed cutting applications.
The CO2 laser uses a carbon dioxide gas as the gain medium and is commonly used for engraving and cutting of organic materials and plastics. It has a low cost and high accuracy, making it an ideal choice for applications where precision is not as critical.
Applications of Laser Etching Machines for Metal
Laser etching machines for metal have a wide range of applications in various industries, including aerospace, automotive, medical, and industrial manufacturing. They are used for engraving, marking, and cutting of metals, as well as for creating intricate designs and logos.
Laser etching machines for metal provide a precise and efficient way to create complex designs and markings on metal surfaces. They offer a high level of accuracy, speed, and flexibility, making them an essential tool in many industries.
Design and Components of Laser Etching Machines for Metal
A laser etching machine for metal is comprised of several key components that work together to achieve precise and accurate results. Understanding these components is essential for optimizing the performance of a laser etching machine.
The main components of a laser etching machine for metal include the laser head, beam delivery system, control panel, and other peripherals such as the work platform and exhaust system. Each of these components plays a critical role in achieving high-quality etched designs on metal surfaces.
Laser Head: A Critical Component of the Etching Process
The laser head is responsible for emitting a concentrated beam of light that is directed at the metal surface. This beam is precisely controlled to achieve the desired etch depth and pattern. The laser head consists of a laser source, optics, and a galvanometric scanner that allows for precise movement of the beam across the metal surface.
For example, some laser etching machines use a Q-switched Neodymium-doped Yttrium Aluminum Garnet (Nd:YAG) laser, which produces a high-powered beam with a pulse duration of 10-100 ns.
The laser head is designed to withstand high temperatures and vibrations, ensuring precise control over the etching process. The high-powered beam emitted by the laser head allows for deep etching and precise control over the etching process.
Beam Delivery System: Ensuring Precise Control
The beam delivery system consists of several components, including the beam splitter, beam expander, and beam condenser. These components work together to ensure that the laser beam is precisely focused onto the metal surface.
The beam splitter allows for the distribution of the laser beam to multiple locations on the metal surface, while the beam expander increases the beam size to achieve a more uniform etching pattern. The beam condenser focuses the beam onto a precise point, allowing for high-resolution etching.
Control Panel: Monitoring and Controlling the Etching Process
The control panel is the user interface of the laser etching machine, allowing users to monitor and control the etching process. The control panel is typically equipped with a touchscreen display and a set of buttons and levers that allow users to adjust parameters such as laser power, etching speed, and pattern resolution.
The control panel also allows users to monitor the etching process in real-time, including parameters such as etching depth, temperature, and beam stability. This information is crucial for achieving high-quality etched designs and ensuring precision control over the etching process.
Safety Precautions and Considerations
Operating a laser etching machine for metal comes with its own set of unique challenges and risks. It is essential to prioritize safety precautions to prevent accidents and ensure a safe working environment. Laser etching machines can emit harmful radiation, generate sparks, and cause injuries from flying debris. In this section, we will discuss the importance of safety precautions, types of hazards associated with laser etching machine operation, and measures to prevent them.
Laser Radiation
Laser radiation is a significant risk associated with laser etching machines. Prolonged exposure to laser radiation can cause permanent damage to the eyes, skin, and other parts of the body. It is essential to take precautions to prevent exposure to laser radiation during operation and maintenance.
- Preventing Laser Radiation Exposure: To prevent exposure to laser radiation, it is crucial to follow proper safety protocols when operating the machine. This includes wearing personal protective equipment (PPE), such as laser safety glasses, gloves, and a face shield. Regularly cleaning and maintaining the machine to prevent any blockages or dust accumulation, which can cause the laser beam to become unstable and potentially harmful.
Maintenance Requirements
Regular maintenance of the laser etching machine is essential for safe operation. Maintenance helps to prevent mechanical failures, reduces the risk of accidents, and ensures optimal performance of the machine. Failure to maintain the machine can lead to costly repairs, downtime, and potentially severe injuries.
- Importance of Regular Maintenance: Regular maintenance of the laser etching machine includes tasks such as cleaning the machine, checking for wear and tear on moving parts, tightening loose screws, and ensuring proper ventilation. It is also essential to follow the manufacturer’s guidelines for maintenance and repairs to prevent damage to the machine and ensure compliance with safety regulations.
- Cleaning the Machine: Cleaning the machine is a critical aspect of maintenance. Dust, dirt, and debris can accumulate and cause the laser beam to become unstable, leading to accidents and injuries. Regular cleaning of the machine helps to prevent this and ensures optimal performance.
Additional Safety Considerations
In addition to laser radiation and maintenance concerns, there are other safety considerations to be aware of when operating a laser etching machine for metal. These include ensuring proper ventilation, keeping loose clothing tied back, and avoiding contact with electrical components.
- Proper Ventilation: Proper ventilation is essential to prevent the accumulation of dust and debris in the air. This can help to reduce the risk of respiratory problems and ensure a safe working environment.
- Electrical Safety: Electrical safety is a critical aspect of laser etching machine operation. Avoiding contact with electrical components and following proper grounding procedures can help to prevent electrical shocks and ensure safe operation of the machine.
Applications of Laser Etching Machines for Metal
Laser etching machines for metal are versatile tools with a wide range of applications across various industries. Their precision, speed, and versatility have made them an essential component in many manufacturing processes. One of the key benefits of laser etching machines is their ability to create intricate designs and patterns on metal surfaces with high accuracy and detail.
Jewelry Making
Jewelry making is one of the most popular applications of laser etching machines for metal. These machines allow jewelry designers to create intricate designs and patterns on metal surfaces, such as gold, silver, and platinum. Laser etching machines can be used to create custom engravings, intricate designs, and even 3D models on metal jewelry pieces. This technology has revolutionized the jewelry industry by enabling designers to create complex and detailed designs with ease and precision.
Electronics Manufacturing
In electronics manufacturing, laser etching machines are used to create circuit board patterns and designs. These machines can etch complex patterns and designs onto metal surfaces, such as copper and gold, with high accuracy and precision. Laser etching machines are used in various stages of electronics manufacturing, including circuit board design, prototyping, and production. They enable manufacturers to create complex designs and patterns quickly and efficiently, reducing production time and costs.
Other Applications
Other applications of laser etching machines for metal include:
- Die-making: Laser etching machines are used to create intricate designs and patterns on metal surfaces for die-making applications.
- Stamping: These machines are used to create custom designs and patterns on metal surfaces for stamping applications.
- Medical equipment: Laser etching machines are used to create custom designs and patterns on metal surfaces for medical equipment, such as surgical instruments and implants.
- Metal fabrications: Laser etching machines are used to create custom designs and patterns on metal surfaces for metal fabrications, such as signs and labels.
These applications highlight the versatility and precision of laser etching machines for metal, making them an essential tool in various industries.
Comparison of Laser Etching Machines for Metal with Other Etching Methods
When it comes to metal etching, various methods are used to achieve the desired outcome. Among these methods, laser etching machines for metal have been gaining popularity due to their high precision and non-contact operation. However, other methods such as chemical etching and sandblasting are still widely used. In this section, we will compare these methods to determine their advantages and disadvantages.
Chemical Etching vs Laser Etching
Chemical etching and laser etching are two of the most common methods used for metal etching. While chemical etching has been around for a long time, laser etching has been gaining popularity in recent years due to its high precision and environmental benefits. Here are some of the key differences between these two methods:
Chemical etching involves the use of chemicals to dissolve the metal surface, leaving behind a desired pattern or design. This method is inexpensive and widely available, making it a popular choice among manufacturers. However, chemical etching has some significant drawbacks, including the use of toxic chemicals and environmental concerns.
| Etching Method | Advantages | Disadvantages |
|---|---|---|
| Chemical Etching | Inexpensive, widely available | Toxic chemicals, environmental concerns |
On the other hand, laser etching uses a high-powered laser beam to remove the metal surface, leaving behind a precise and accurate pattern. This method is highly precise and non-contact, making it ideal for complex designs and small-scale production. However, laser etching is costly and requires complex operation, making it less accessible to small-scale manufacturers.
| Etching Method | Advantages | Disadvantages |
|---|---|---|
| Laser Etching | High precision, non-contact, and environmentally friendly | Costly, complex operation |
Other Etching Methods, Laser etching machine for metal
In addition to chemical etching and laser etching, other methods such as sandblasting and electrochemical etching are also used for metal etching. Sandblasting involves the use of high-pressure air to remove the metal surface, while electrochemical etching uses an electrolyte solution to dissolve the metal surface. Both of these methods have their own advantages and disadvantages, and the choice of method depends on the specific requirements of the project.
Ultimate Conclusion
In conclusion, the laser etching machine for metal has redefined the metal etching process, offering precision, speed, and versatility. By choosing the right machine for your specific needs, you can unlock new design possibilities and stay ahead of the competition in the industry. Whether you’re a hobbyist or a seasoned professional, the laser etching machine for metal is an excellent investment that will pay dividends for years to come.
FAQ Explained: Laser Etching Machine For Metal
What is laser etching machine for metal?
A laser etching machine for metal is a cutting-edge technology that uses a high-powered Nd:YAG laser to engrave, mark, and cut a variety of metals, including stainless steel, aluminum, and copper.
How does laser etching machine for metal work?
The laser etching machine for metal uses a Nd:YAG laser, which creates a high-temperature plasma that vaporizes the metal surface, leaving behind precise and intricate designs.
Can laser etching machine for metal be used on any type of metal?
The laser etching machine for metal is suitable for a wide range of metals, including stainless steel, aluminum, copper, and other conductive materials.
