Manitowoc Ice Machine Water Inlet Valve takes center stage as a crucial component in ice machine operation, ensuring smooth water flow for efficient ice production. Understanding the purpose, design, and maintenance of this valve is crucial for ice machine owners and technicians alike.
This article delves into the world of Manitowoc Ice Machine Water Inlet Valves, covering their purpose, common types, design considerations, installation, maintenance, troubleshooting, and safety protocols. By the end of this comprehensive guide, readers will gain in-depth knowledge on how to optimize the performance of their Manitowoc Ice Machine Water Inlet Valve.

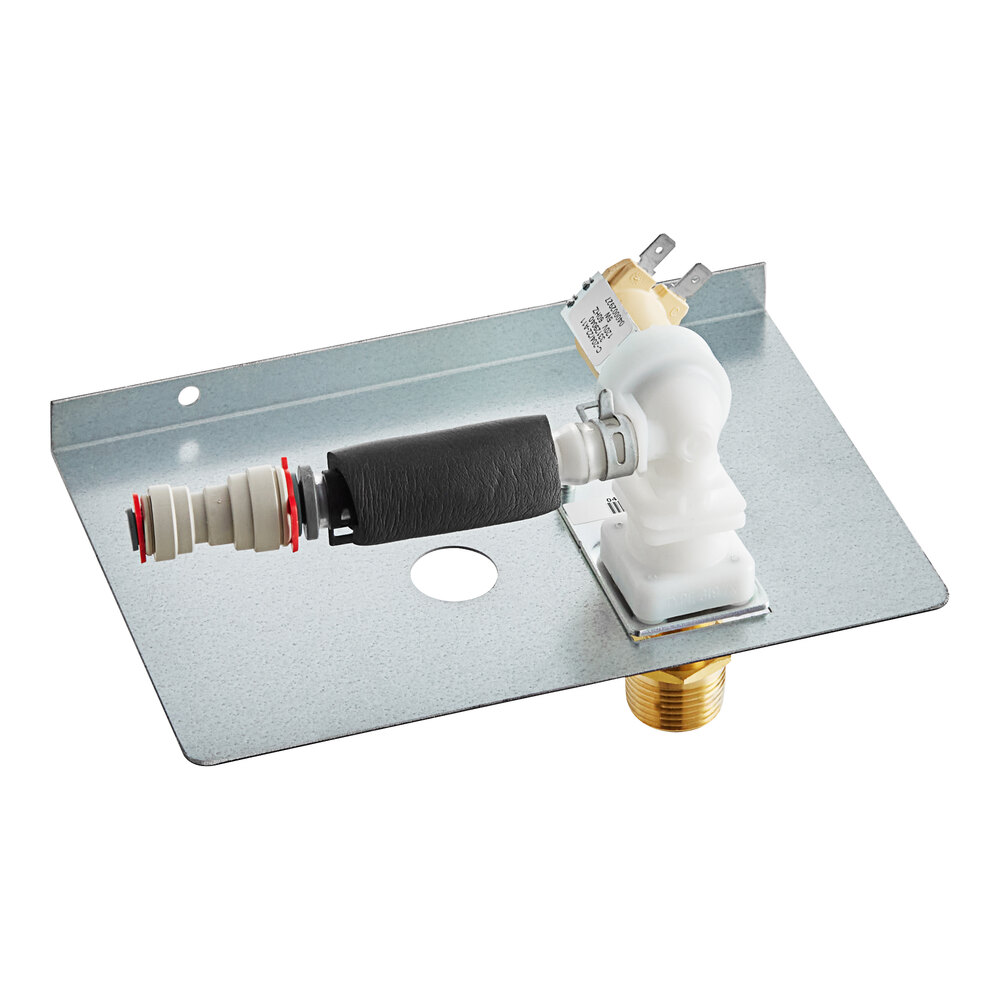

Understanding Manitowoc Ice Machine Water Inlet Valve
The Manitowoc ice machine water inlet valve is a critical component that plays a vital role in the functioning of the entire ice-making process. It is responsible for controlling the flow of water into the machine, ensuring that the ideal amount of water is available for ice production. The valve is designed to shut off the water supply when the machine is not in operation, thereby conserving water and reducing energy consumption.
Purpose and Function of the Water Inlet Valve
The primary purpose of the Manitowoc ice machine water inlet valve is to regulate the water flow into the unit, allowing it to maintain a consistent water temperature and pressure. This function is essential for ice production, as it enables the machine to produce high-quality ice that meets the required standards. The valve also helps to prevent water damage and contamination, ensuring the longevity of the machine.
The water inlet valve is designed to work in tandem with other components, including the water pump, to provide a reliable and efficient ice-making process.
Common Types of Water Inlet Valves Used in Manitowoc Ice Machines
There are several types of water inlet valves used in Manitowoc ice machines, each designed to cater to specific requirements and applications. Some of the most common types include:
- Floating Valve: This type of valve operates by floating up or down, depending on the water pressure, to control the flow of water into the machine.
- Ball Valve: This type of valve uses a rotating ball to control the flow of water, allowing for precise regulation of the water supply.
- Needle Valve: This type of valve utilizes a needle-like mechanism to control the water flow, providing a high level of precision and accuracy.
Each type of valve has its own unique characteristics and advantages, and the choice of valve depends on the specific requirements of the machine and the application.
Interaction with Other Components, Manitowoc ice machine water inlet valve
The water inlet valve interacts with other components in the Manitowoc ice machine, including the water pump, to provide a reliable and efficient ice-making process. The valve works in conjunction with the water pump to maintain a consistent water pressure and flow rate, ensuring that the machine operates at optimal levels. In addition, the valve helps to regulate the water temperature, which is critical for ice production.
The valve also interacts with the machine’s control system, receiving signals to open or close the valve based on the machine’s operation status. This ensures that the valve is always in the correct position, whether the machine is producing ice or idle.
Design and Components of Manitowoc Ice Machine Water Inlet Valve
The Manitowoc ice machine water inlet valve is a crucial component of the ice machine’s operation, responsible for controlling the flow of water into the machine. Its design and components play a vital role in ensuring the smooth and efficient operation of the ice machine.
In designing the water inlet valve, the manufacturer considers several factors, including size, material, and flow rate. The size of the valve is critical in determining the capacity of water that can be accommodated, while the material used should be durable and resistant to corrosion. The flow rate, on the other hand, affects the speed at which water enters the machine, which in turn impacts the production rate of ice.
In terms of components, the water inlet valve consists of several key parts, including the solenoid, valve seat, and valve stem. The solenoid is responsible for controlling the flow of water into the machine, and is usually electrically operated. The valve seat, on the other hand, is the part that comes into contact with the valve stem, and plays a critical role in regulating the flow of water. The valve stem is the moving part of the valve that is responsible for opening and closing the valve.
Mounting and Securing the Valve
The water inlet valve is typically mounted and secured within the ice machine using screws or other fastening mechanisms. The valve is usually located near the water supply line, and is connected to the ice machine’s plumbing system.
- The valve is usually secured using screws or clips to prevent it from shifting or vibrating during operation.
- The valve is typically connected to the water supply line using a hose or piping, depending on the design of the ice machine.
- The valve is usually located near the water supply line, making it easily accessible for maintenance and repairs.
The mounting and securing of the valve is critical in ensuring that it operates smoothly and efficiently, and that it can withstand the stress and strain of repeated use.
Components of the Water Inlet Valve
In addition to the solenoid, valve seat, and valve stem, the water inlet valve also consists of several other components, including the valve body, O-rings, and gaskets. The valve body is the main housing of the valve, and is responsible for containing the valve stem and other components. O-rings and gaskets are used to seal the valve body and prevent leaks.
- The valve body is made of a durable material, such as brass or stainless steel, and is resistant to corrosion and wear.
- The O-rings and gaskets are used to seal the valve body and prevent leaks, and are typically made of rubber or other flexible materials.
- The valve stem is made of a durable material, such as brass or stainless steel, and is designed to withstand the stress and strain of repeated use.
The components of the water inlet valve work together to ensure that it operates smoothly and efficiently, and that it can withstand the stress and strain of repeated use.
Installation and Maintenance of Manitowoc Ice Machine Water Inlet Valve
The installation of a new water inlet valve in a Manitowoc ice machine requires attention to detail and a proper understanding of the process. The goal is to ensure a smooth water flow to the machine, preventing any issues with ice production. A clean and properly maintained water inlet valve helps to avoid mineral buildup, contamination, and wear on the valve itself, which can reduce performance and lead to premature failure.
Installation Steps
The following steps should be taken when installing a new water inlet valve in a Manitowoc ice machine:
- Turn off the water supply to the machine by locating the isolation valves and turning them clockwise. This will ensure that no water flows to the machine during the installation process, and also prevents any potential flooding or leakage.
- Disconnect the existing water line from the inlet valve. This can be done by loosening the hose nut or connector. Be careful not to damage any of the surrounding pipes or fittings.
- Remove any old packing or gaskets from the inlet valve. Clean the area thoroughly to ensure a proper seal when reassembling the valve.
- Apply a thin layer of plumber’s grease or Teflon tape to the threads of the new inlet valve. This will help to prevent any leaks when the valve is reconnected.
- Install the new water inlet valve by hand tightening the hose nut or connector. Ensure it is securely attached to the machine’s inlet port.
- Turn on the water supply and check for any leaks around the valve or hose connections. Tighten any loose connections as needed to prevent water from escaping.
Maintenance and Cleaning
Regular maintenance and cleaning is crucial to extend the life of the water inlet valve in a Manitowoc ice machine. Water containing calcium and other minerals can cause deposits to form over time, which can lead to a decrease in performance, leaks, or complete failure of the valve. Descale the valve every 3 to 6 months, depending on usage, and inspect for any worn-out parts.
Water hardness varies depending on location. Areas with hard water, which contains more calcium and minerals, require more frequent descaling.
A typical maintenance routine should include the following steps:
- Turn off the water supply to the machine by locating the isolation valves and turning them clockwise.
- Disconnect the water line from the inlet valve, and set it aside.
- Soak the valve in a mixture of equal parts water and white vinegar for several hours to loosen mineral deposits.
- Use a soft-bristled brush or a non-abrasive scrubber to clean the valve ports and surrounding area.
- Rinse the valve thoroughly with clean water to remove any remaining vinegar and debris.
- Reassemble the valve, ensuring a secure connection.
Troubleshooting Common Issues
There are several common issues that can arise with the water inlet valve in a Manitowoc ice machine. Some of these problems include:
- A leak from the water valve
- Failure of the valve to open or close
- Ice production is being affected due to improper water flow
Each of these problems requires a different solution. The following is a list of common causes along with proposed solutions for the aforementioned troubles:
| Issue | Common Cause | Solution |
|---|---|---|
| Leak from the water valve | Loose or damaged gasket, or worn-out valve threads | Replace the gasket or threads as needed, and re-tighten any loose connections. |
| Failure of the valve to open or close | Mineral buildup, worn-out parts, or incorrect valve setting | Descale the valve, replace any worn-out parts, or adjust the valve setting according to the user manual. |
| Ice production is being affected due to improper water flow | Blockage in the valve, or water flow issues due to mineral buildup | Clean the valve ports and surrounding area, and ensure a proper connection between the valve and water supply line. |
Comparing Manitowoc Ice Machine Water Inlet Valve to Other Brands
In the realm of refrigeration, the nuances of water inlet valves lie beneath the surface. Like fragile leaves dancing on autumn breezes, the delicate balance between efficiency and durability plays out in the intricate mechanisms of these valves. When it comes to choosing a reliable water inlet valve, Manitowoc stands among the pioneers, but how does it fare against its counterparts from other esteemed brands?
The landscape of water inlet valves is as vast and varied as the stars in a celestial expanse. Brands like Hoshizaki, Scotsman, and everyman’s darling, Scotsman, each have a unique approach to design and functionality. The differences manifest in materials, mechanisms, and overall build quality, setting each brand apart like distinct threads in a rich tapestry.
Evaluation of Design and Components
In this vast tapestry, the threads of design and components intertwine, reflecting the brand’s philosophy. A closer examination reveals the distinct character of each brand.
- Manitowoc’s water inlet valve is known for its durable steel construction, resistant to corrosion and wear and tear. This sturdy build ensures consistent performance even under heavy usage.
- Hoshizaki’s valve boasts a more streamlined design, allowing for increased flexibility and adaptability to different water conditions. This design makes it an excellent choice for those who value versatility.
- Scotsman’s valve, with its innovative use of durable polymers, offers enhanced chemical resistance and easy maintenance. This thoughtful design makes it a favorite among busy commercial establishments.
As these differences become apparent, the choice between brands comes down to specific needs and priorities. Each valve offers a unique set of features, each catering to a distinct user profile.
Comparative Analysis of Advantages and Disadvantages
When scrutinizing the performance of each valve, the following key points emerge:
| Brand | Advantages | Disadvantages |
| Manitowoc | High durability, resistant to water conditions | Steeper upfront cost, slightly heavier construction |
| Hoshizaki | Superior adaptability, reduced maintenance | Lower chemical resistance, not ideal for harsh environments |
| Scotsman | Excellent chemical resistance, easy maintenance | Higher risk of corrosion, sensitive to water conditions |
In this delicate dance of strengths and weaknesses, the best valve choice is as elusive as a whispered secret. It depends on the individual user’s needs, their priorities, and their willingness to adapt.
With such intricate considerations in mind, one begins to understand the true essence of the humble water inlet valve. Like petals unfolding in a garden of complexity, each valve offers a unique charm, reflecting the brand’s vision, functionality, and essence.
Safety Considerations for Manitowoc Ice Machine Water Inlet Valve
In the realm of icy delights, safety should be the paramount concern, lest we suffer the slings of misfortune. As we navigate the intricate world of water inlet valves, caution is our trusted ally, guiding us through the labyrinth of electrical and water flow dynamics.
Electrical Guidelines
When working with the water inlet valve of a Manitowoc ice machine, one must be acutely aware of the electrical landscape. The voltage and current ratings of the valve are crucial, lest a spark of misfortune ignites a blaze of electrical chaos. Be sure to familiarize yourself with the valve’s electrical specifications, lest you falter in the face of danger. A careless error can have catastrophic consequences, so tread with caution.
- Always switch off the power supply to the ice machine before attempting any maintenance or repairs.
- Educate yourself on the valve’s electrical ratings and specifications.
- Avoid using tools or equipment that may cause electrical shock.
- Regularly inspect the electrical connections and wiring for signs of wear or damage.
Water Flow and Pressure Guidelines
The water inlet valve is the lifeblood of the ice machine, regulating the flow of water to create the chilled crystals we adore. But with this power comes the responsibility to navigate the treacherous waters of pressure and flow rate. Ensure that the valve is properly sized for the needs of the machine, lest it struggle to keep pace with the demands of production.
- Verify that the water supply pressure meets the manufacturer’s specifications.
- Educate yourself on the valve’s flow rate and pressure ratings.
- Regularly inspect the valve for signs of wear or damage due to high pressure.
- Use a pressure regulator to maintain a stable water pressure.
Connecting and Disconnecting the Valve
As we navigate the world of the water inlet valve, the art of connecting and disconnecting it becomes an intricate waltz. A single misstep can lead to disaster, so approach this task with the reverence of a skilled surgeon.
- Before connecting or disconnecting the valve, ensure that the power supply to the ice machine is switched off.
- Use a wrench or spanner to loosen the valve nut, then carefully remove it.
- Inspect the valve threads for any signs of damage or wear.
- Apply a thin layer of pipe dope or Teflon tape to the threads, then reassemble the valve.
Conclusion
In conclusion, Manitowoc Ice Machine Water Inlet Valve is a critical component that requires proper installation, maintenance, and troubleshooting to ensure seamless ice production. By following the guidelines Artikeld in this article, readers can identify common issues, diagnose problems, and provide effective solutions to maintain their ice machines’ optimal performance.
Detailed FAQs
What is the purpose of a Manitowoc Ice Machine Water Inlet Valve?
The primary function of the water inlet valve in a Manitowoc Ice Machine is to regulate the flow of water into the machine, ensuring the production of clean and efficient ice.
What are the common types of water inlet valves used in Manitowoc Ice Machines?
The most common types of water inlet valves used in Manitowoc Ice Machines include solenoid valves, float valves, and pressure-activated valves.
How often should I clean and descale my Manitowoc Ice Machine Water Inlet Valve?
Regular cleaning and descaling of the water inlet valve is recommended every 3-6 months, or as specified in the manufacturer’s guidelines, to prevent mineral buildup and maintain optimal performance.
