Overview of Plasma Torch Cutting Machines

Plasma torch cutting machines are precision tools used in various industries for cutting and processing materials. They offer an efficient and precise method of cutting through metals, as they can achieve high cutting speeds with minimal heat input, resulting in excellent surface finish and reduced distortion of the material being cut.

The primary function of a plasma torch cutting machine is to generate a high-temperature, ionized gas plasma that is directed at the material to be cut, using a focused, high-velocity gas flow. This process allows for clean, precise cuts in various materials, making it a widely used machining process.

Types of Materials Cuttable with Plasma Torch Technology

Plasma torch cutting machines are versatile and can be used to cut a wide variety of materials, including metals, as well as some other conductive materials, depending on the specific configuration and settings of the machine. Common materials cuttable with plasma torch technology include:

Cutting Metals: Stainless Steel, Mild Steel, Aluminum, Copper, and other ferrous and non-ferrous metals; these materials can be processed with high-quality surface finish and minimal waste.
Cutting Other Conductive Materials: Carbon steel, Inconel, Monel, and other high-temperature alloys can also be processed.

The choice of material to cut with a plasma torch cutting machine depends on several factors, including the thickness of the material, the required surface finish, and the speed at which the cutting process needs to be accomplished.

The plasma torch cutting machine can also be used for cutting pipes, tubing, and other cylindrical materials, as well as complex shapes and intricate designs, which is why it stands out among other cutting machines in its category, making it a favorite across multiple industries.

Key Components of a Plasma Torch Cutting Machine

Plasma Torch Cutting Machine – Expert Solution for Precision Cutting

The plasma torch cutting machine is a complex device that consists of several essential components, each playing a crucial role in the cutting process. These components work together to ensure precise and efficient cutting of various materials.

The key components of a plasma torch cutting machine can be broadly classified into three categories: the power supply, the plasma torch, and the control system. Understanding the role of each component is crucial for effective cutting and optimal machine performance.

Powder Supply

The power supply is the backbone of the plasma torch cutting machine. It provides the necessary energy to generate the plasma arc. The power supply system consists of a transformer, a high-voltage capacitor, and a control unit.

Component	Function
Transformer	Step-downs the incoming AC voltage to a level suitable for the high-voltage capacitor
High-Voltage Capacitor	Stores electrical energy and releases it to create the plasma arc
Control Unit	Regulates the power supply to maintain a stable voltage and reduce electrical noise

Plasma Torch

The plasma torch is the component responsible for generating the plasma arc. It consists of a nozzle, an anode, and an igniter.

The nozzle helps to focus the plasma arc, increasing its intensity and precision.
The anode is the positive electrode of the plasma torch, where the plasma arc is produced.
The igniter is the component responsible for generating the initial spark that creates the plasma arc.

Control System

The control system is the brain of the plasma torch cutting machine. It consists of a control unit, a CNC system, and a plasma arc stabilizer.

The control unit is responsible for regulating the cutting parameters, such as voltage, current, and gas flow rate.
The CNC system controls the movement of the plasma torch, ensuring precise cutting and minimal waste.
The plasma arc stabilizer helps to maintain a stable plasma arc, reducing the risk of arc blow and ensuring consistent cutting quality.

Safety Precautions and Best Practices

Operating a plasma cutting machine requires a combination of skill, knowledge, and attention to safety protocols. In this section, we will discuss the importance of proper ventilation and personal protective equipment (PPE), as well as the procedures for handling and storing plasma cutting equipment.

Importance of Proper Ventilation

Proper ventilation is crucial when operating a plasma cutting machine. The machine produces fumes and gases, including nitrogen oxides, carbon monoxide, and particulate matter, which can be hazardous to your health if inhaled. A well-ventilated area helps to dissipate these fumes and gases, reducing the risk of exposure. Ensure that your workspace is well-ventilated by installing an exhaust system or using a portable ventilation unit. Always wear a dust mask or respirator when operating the machine to further protect yourself.

Importance of Personal Protective Equipment (PPE)

Wearing proper PPE is essential when operating a plasma cutting machine. A minimum of Level A PPE should be worn, including a face shield, safety glasses, welding helmet, coveralls, gloves, and steel-toed boots. This will protect you from the intense heat, sparks, and flying debris generated by the cutting process. Wear closed-toe shoes and keep loose clothing and jewelry to a minimum to prevent entanglement with the machine.

Proper Handling and Storage of Plasma Cutting Equipment

To prevent accidents and damage to the equipment, follow these guidelines for handling and storing plasma cutting equipment:

Always turn off the machine and let it cool down before cleaning or performing maintenance.
Use a wire brush to clean the electrodes and other metal parts, but avoid using abrasive materials that can damage the surface.
Store the machine in a dry, dust-free area, away from flammable materials and out of reach of children.
Keep the power cord and other electrical components away from water and moisture.
Regularly inspect the machine for signs of wear and damage, and perform maintenance as needed.

Safety Precautions and Best Practices for Plasma Cutting Operators

Below is a list of essential safety precautions and best practices for plasma cutting operators:

Always read and follow the manufacturer’s instructions for operating the machine.
Wear proper PPE, including a face shield, safety glasses, welding helmet, coveralls, gloves, and steel-toed boots.
Ensure the work area is well-ventilated and clear of flammable materials.
Keep the machine at a safe distance from bystanders and avoid leaving it unattended.
Monitor the machine’s temperature and adjust the cutting speed and voltage accordingly.
Never use the machine in a confined space or near an open flame.
Keep loose clothing and jewelry to a minimum to prevent entanglement with the machine.

Additional Safety Tips

When operating a plasma cutting machine, always be aware of your surroundings and take necessary precautions to prevent accidents. Some additional safety tips include:

Never touch the electrode or other hot parts of the machine.
Use a fire extinguisher rated for electrical fires in case of an emergency.
Keep a first-aid kit on hand in case of minor injuries.
Regularly inspect the machine for signs of wear and damage, and perform maintenance as needed.

Applications of Plasma Torch Cutting Machines

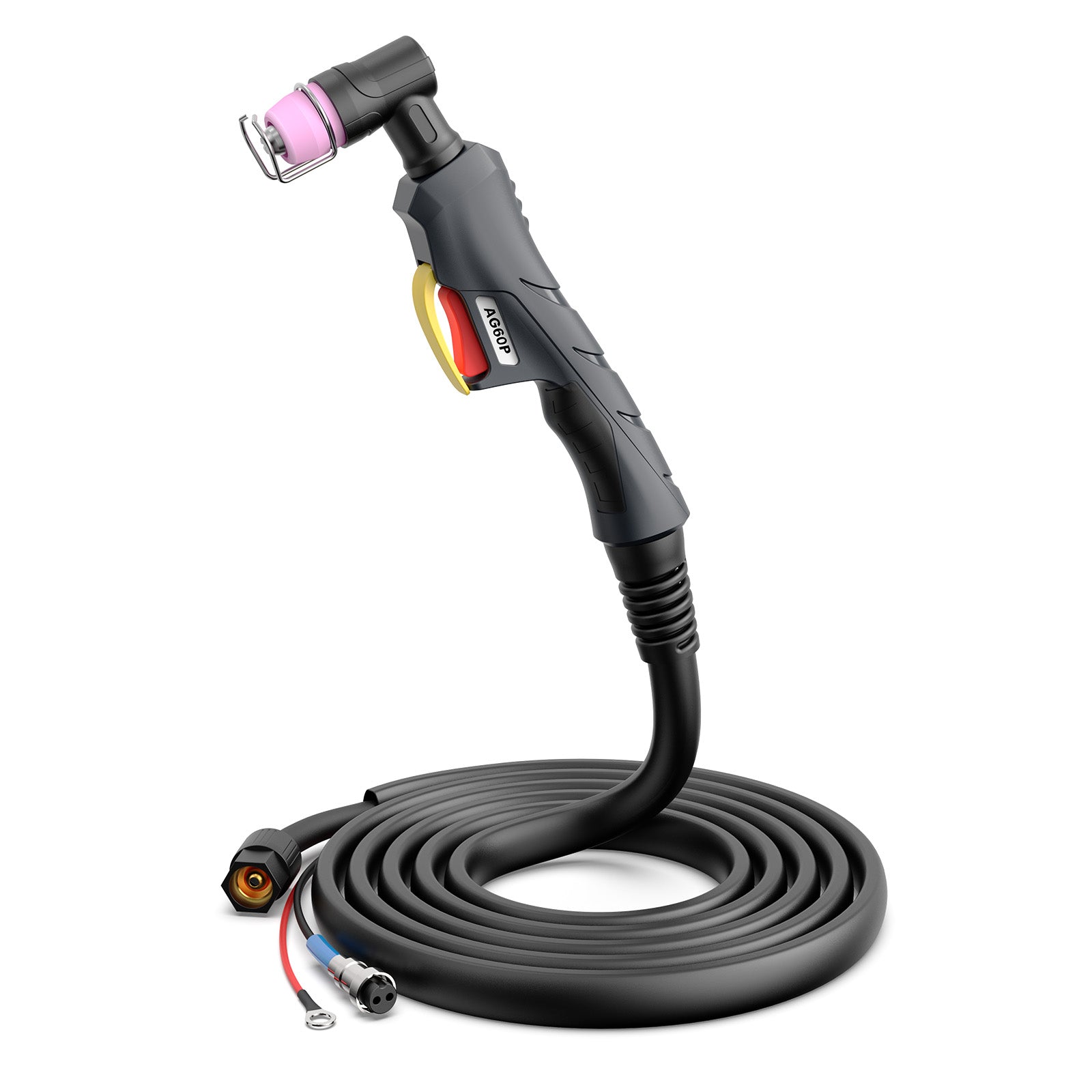

Mild Steel Plasma Cutting Torch at ₹ 5000/piece in New Delhi | ID ...

Plasma torch cutting machines are versatile tools used in various industries for precision cutting, engraving, and marking metals and other materials. The applications of plasma cutting machines are diverse, and their benefits can be seen across different sectors.

Metals Fabrication Industry

The metals fabrication industry is one of the primary users of plasma cutting machines. Plasma cutting offers several benefits in this industry, including:

High-speed cutting: Plasma cutting enables fabricators to cut through thick metals quickly and accurately, reducing production time and increasing efficiency.
Complex cut designs: Plasma cutting allows for intricate cut designs, making it ideal for creating custom metal parts and products.
Cost-effectiveness: Plasma cutting machines are more cost-effective than traditional methods, such as sawing or grinding, especially for large-scale production.

Examples of plasma cutting projects in the metals fabrication industry include:

Cutting complex metal parts for aerospace and defense applications.
Engraving intricate designs on metal signs and logos.
Producing large quantities of metal parts for the automotive industry.

Automotive Industry

The automotive industry also benefits from the use of plasma cutting machines. Plasma cutting offers advantages such as:

High precision: Plasma cutting enables automakers to create precise cut designs, reducing the risk of errors and improving product quality.
Fast turnaround times: Plasma cutting machines allow manufacturers to meet tight production deadlines, ensuring that vehicles are delivered on time.
Economic savings: Plasma cutting reduces material waste and minimizes the need for secondary operations, resulting in cost savings.

Examples of plasma cutting projects in the automotive industry include:

Cutting complex metal parts for engine and transmission systems.
Producing body panels and exterior trim pieces with intricate designs.
Creating custom interior parts, such as dashboard components and instrument panels.

Aerospace Industry

The aerospace industry is another area where plasma cutting machines are widely used. Plasma cutting offers several benefits, including:

High precision: Plasma cutting enables aerospace manufacturers to create precise cut designs, ensuring accurate production of complex parts.
Resistance to corrosion: Plasma cutting reduces the risk of corrosion, as the process creates a clean cut with minimal residual material.
Increased productivity: Plasma cutting machines increase production efficiency, enabling manufacturers to meet demanding delivery schedules.

Examples of plasma cutting projects in the aerospace industry include:

Cutting complex metal parts for aircraft and satellite systems.
Producing intricate designs for aerospace components, such as engine nozzles and heat shields.
Creating custom parts for aircraft and spacecraft, such as engine mounts and structural components.

Other Industries

Plasma cutting machines are also used in various other industries, including:

Shipbuilding: Plasma cutting is used to produce complex metal parts for shipbuilding, such as hull plates and deck structures.
Architecture: Plasma cutting is used to produce custom metal components for architectural features, such as railings and decorative trim.
Medical equipment: Plasma cutting is used to produce precise metal components for medical equipment, such as surgical instruments and medical implants.

In each of these industries, plasma cutting machines offer benefits such as increased efficiency, precision, and cost-effectiveness, making them essential tools for manufacturers and fabricators around the world.

Maintenance and Troubleshooting of Plasma Torch Cutting Machines

Regular maintenance is crucial to ensure the optimal performance and longevity of a plasma torch cutting machine. A well-maintained machine can help prevent costly repairs, reduce downtime, and improve overall output. This chapter will cover the maintenance schedule, common issues, and troubleshooting procedures for plasma cutting machines.

Maintenance Schedule

A regular maintenance schedule should be established and followed to ensure the plasma cutting machine operates at its best. This includes daily, weekly, monthly, and annual maintenance tasks.

### Daily Maintenance

– Clean the machine and work area regularly to prevent dust and debris buildup.
– Check the plasma torch for proper alignment and securement.
– Verify that the machine is properly calibrated and adjusted.

### Weekly Maintenance

– Inspect and clean the plasma torch nozzles and electrodes.
– Check the machine’s electrical connections and cables for signs of wear or damage.
– Perform a thorough cleaning of the machine and work area.

### Monthly Maintenance

– Inspect and replace the plasma torch nozzles and electrodes as needed.
– Check and replace the machine’s consumable parts, such as the gas hoses and regulators.
– Perform a thorough cleaning of the machine and work area.

### Annual Maintenance

– Inspect and replace the machine’s electrical components, such as the power supply and control panels.
– Perform a thorough cleaning and inspection of the machine and work area.
– Update the machine’s software and firmware as necessary.

Common Issues and Troubleshooting Procedures, Plasma torch cutting machine

### Plasma Torch Not Igniting

– Check the plasma torch for proper alignment and securement.
– Verify that the machine is properly calibrated and adjusted.
– Check the plasma torch nozzles and electrodes for signs of wear or damage.

### Machine Not Cutting Properly

– Check the machine’s electrical connections and cables for signs of wear or damage.
– Verify that the machine is properly calibrated and adjusted.
– Check the plasma torch nozzles and electrodes for signs of wear or damage.

### Machine Producing Unusual Noise or Vibrations

Troubleshooting Steps and Solutions

### Common Issues and Troubleshooting Procedures

| Issue | Possible Causes | Troubleshooting Steps |
| — | — | — |
| Plasma torch not igniting | Poor plasma torch alignment, worn or damaged plasma torch nozzles and electrodes, electrical issue | Check plasma torch alignment, inspect and clean plasma torch nozzles and electrodes, verify electrical connections and cables. |
| Machine not cutting properly | Poor machine calibration, worn or damaged plasma torch nozzles and electrodes, electrical issue | Verify machine calibration, inspect and clean plasma torch nozzles and electrodes, check electrical connections and cables. |
| Machine producing unusual noise or vibrations | Loose or worn machine parts, electrical issue, plasma torch misalignment | Inspect and tighten machine parts, verify electrical connections and cables, check plasma torch alignment. |

By following a regular maintenance schedule and troubleshooting procedures, you can help prevent common issues and ensure the optimal performance and longevity of your plasma torch cutting machine. Remember to always refer to the machine’s user manual and manufacturer’s guidelines for specific maintenance and troubleshooting instructions.
