Types of Crane Machines Summarized

With types of crane machines at the forefront, this topic opens a window to an in-depth look at the different types of crane machines, including mobile cranes, tower cranes, crawler cranes, and rough-terrain cranes, which are essential in construction, manufacturing, and other industries.

The main functions of crane machines include hoisting and lowering loads, rotating, and extending or retracting booms. They play a crucial role in various applications such as marine and dockside operations, construction and building demolition, mining and heavy industry, and manufacturing and warehouse operations.

Types of Crane Machines

Crane machines play a vital role in various industries such as construction, manufacturing, and logistics. They are used to lift and move heavy loads, making it easier to complete tasks efficiently and safely. There are several types of crane machines, each with its unique characteristics and applications.

Mobile Cranes

Mobile cranes are versatile and can be easily transported from one location to another. They are often used in urban areas where space is limited. Mobile cranes typically have a boom or jib that can be extended to reach high elevations. They are suitable for tasks such as lifting heavy equipment, constructing buildings, and repairing infrastructure.

Mobile cranes offer several advantages, including:

Portability: Mobile cranes are designed to be transported quickly and easily, making them ideal for tasks that require frequent relocation.
Flexibility: They can be used in a variety of settings, including urban and rural areas.
Reliability: Mobile cranes are built to withstand harsh weather conditions and can operate in a range of temperatures.

Tower Cranes

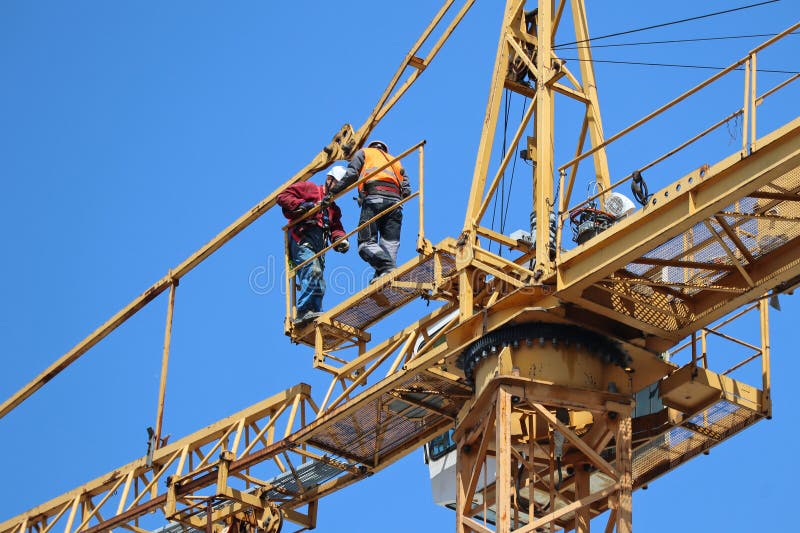

Tower cranes are tall, stationary machines that are commonly used in construction and industrial settings. They have a vertical mast that supports the crane’s boom, which can be extended to reach high elevations. Tower cranes are often used to lift heavy materials, such as concrete and steel, during the construction of buildings and infrastructure.

Tower cranes offer several advantages, including:

High Reach: Tower cranes can lift heavy loads to great heights, making them ideal for construction projects that require tall structures.
Efficiency: They can work continuously, minimizing downtime and increasing productivity.
Reliability: Tower cranes are designed to withstand harsh weather conditions and can operate in a range of temperatures.

Crawler Cranes

Crawler cranes are heavy-duty machines that are used in construction and industrial settings. They have a large boom and a crawler undercarriage that allows them to move slowly and steadily. Crawler cranes are often used to lift heavy loads, such as large equipment and building materials.

Crawler cranes offer several advantages, including:

Lift Capacity: They can lift extremely heavy loads, making them ideal for tasks that require massive lifting capacity.
Reach: Crawler cranes have a long boom that can reach great distances, making them suitable for tasks that require long-distance lifting.
Stability: They have a robust crawler undercarriage that provides stability, making them ideal for tasks that require precise positioning.

Rough-Terrain Cranes

Rough-terrain cranes are designed for use on challenging terrain, including hills, rocks, and uneven surfaces. They have a large boom and a set of four wheels that allows them to move easily over rough terrain. Rough-terrain cranes are often used in construction, mining, and logging applications.

Rough-terrain cranes offer several advantages, including:

Off-Road Capability: They can operate on uneven terrain, making them ideal for tasks that require access to remote or hard-to-reach areas.
Lift Capacity: Rough-terrain cranes can lift heavy loads, making them suitable for tasks that require massive lifting capacity.
Reliability: They are built to withstand harsh weather conditions and can operate in a range of temperatures.

Crane Machine Configurations

Crane machines are employed for lifting, lowering, moving materials or objects, and are typically mounted on a base, fixed on a platform, or even mounted on wheels for flexibility and portability. This diversity requires crane machines to be configured in various ways to cater to an array of applications and operational necessities. There are several crane machine configurations available to suit diverse needs and environments.

Single-piston Boom Cranes

Single-piston boom cranes are one of the earliest configurations used for lifting and material handling. They consist of a single cylinder (or piston) which extends a rope or wire to lift the payload when in the lowered position. When the piston is extended, a mechanical advantage is created, allowing the crane to lift heavier loads compared to manually operated lifting devices. This simplicity in design also translates to a more cost-effective setup for applications where precision lifting is not critical.

This configuration is suitable for tasks like moving heavy machinery parts, construction equipment, or other cumbersome loads that necessitate straightforward lifting capabilities.
It is also used in scenarios where precise positioning is not necessary, and the focus is solely on lifting heavy loads with minimal effort.

Double-piston Boom Cranes

A more advanced alternative to the single-piston boom crane, double-piston boom cranes use two cylinders working in tandem to lift heavier payloads with greater precision. Double-piston boom cranes operate by counterbalancing loads, enabling the crane to lift heavy weights more effectively than single-piston machines. However, they are more complex in design and heavier than single-piston cranes, and require more maintenance to ensure consistent performance.

They are ideal for heavy-duty applications, such as moving large construction equipment or machinery, and handling heavy materials in manufacturing environments.
This configuration is beneficial in settings requiring both precision lifting and load-bearing capacity.

Fixed-Boom Cranes

Fixed-boom cranes employ a rigid boom system, which offers a fixed length that cannot be altered during operation. The boom is typically connected to a stationary base, which is mounted on a platform or anchored to the ground. Fixed-boom cranes offer high lifting capacity and are commonly used in fixed locations such as manufacturing facilities, construction sites, or on ships and boats.

The stability of a fixed-boom crane allows for lifting and moving heavy loads within a fixed area with increased safety and efficiency.
These cranes are particularly suited for heavy-duty applications where space is not a constraint.

Telescoping Boom Cranes

Telescoping boom cranes boast the flexibility and compactness provided by a telescopic boom, which can extend to various lengths depending on the operational requirements. The telescopic boom is composed of sections that slide into one another to allow for adjustable boom length. This adaptability allows telescoping boom cranes to be employed in a range of applications, including construction and material handling, by easily adjusting the boom length to fit spaces of varying sizes.

They find use in projects requiring movement in tight spaces or where temporary lifting operations are needed.
Telescoping boom cranes can be easily transported as they compact into shorter lengths for easier movement.

Cranes for Specific Applications

Cranes are versatile machines that play a crucial role in various industries, from construction and manufacturing to marine and mining operations. Their ability to lift, move, and place heavy loads efficiently makes them an essential component of modern infrastructure development and industrial production. In this section, we will discuss the use of cranes in different applications, highlighting their unique characteristics, advantages, and challenges.

Marine and Dockside Operations

Marine and dockside cranes, also known as harbor or shipyard cranes, are designed to handle heavy loads in harsh marine environments. These cranes are typically used for loading and unloading cargo from ships, construction of offshore platforms, and maintenance of port infrastructure.

They feature sturdy structures, high-strength materials, and corrosion-resistant coatings to withstand the harsh marine environment.
Average lifting capacities range from 10 to 50 tons, with some heavy-duty models capable of lifting up to 100 tons.
Most marine cranes have a slewing range of up to 180° and a height of up to 40 meters, allowing them to reach the highest areas of a ship or a dock.

Marine and dockside cranes require regular maintenance to ensure safe and efficient operation, as well as to prevent damage from corrosion and wear.

Construction and Building Demolition

Construction and building demolition cranes are used for a wide range of tasks, including lifting heavy construction materials, demolishing buildings, and constructing new infrastructure. These cranes are typically used on building sites, in urban environments, and in areas where space is limited.

Mobile cranes, such as boom trucks and all-terrain cranes, are widely used in construction due to their versatility and mobility.
Crawler cranes and tower cranes are popular choices for projects requiring high lifting capacities and precision placement.
Mobile cranes can have lifting capacities ranging from 10 to 1,000 tons, while crawler cranes and tower cranes can lift up to 500 tons or more.

Construction and building demolition cranes demand careful planning to ensure safe and efficient operation, considering factors such as site layout, load planning, and crane movement.

Mining and Heavy Industry

Mining and heavy industry cranes are used to handle massive loads in mining, quarrying, and heavy industry operations. These cranes are designed to lift, move, and place heavy machinery, equipment, and materials in harsh environments.

Heavy-duty cranes, such as drag lines and crawler cranes, are commonly used in mining and quarrying operations, with maximum lifting capacities up to 1,000 tons.
Crane configurations can vary, with some featuring multiple drums, winches, or sheaves for precise load control.
Regular maintenance and inspection are crucial to ensure safe operation, as well as to prevent damage from wear and tear.

Mining and heavy industry cranes are critical components of these operations, and reliable, efficient, and safe crane performance is essential for optimal productivity and profitability.

Manufacturing and warehouse cranes are used to handle lighter to medium-heavy loads within warehouses, factories, and manufacturing facilities. These cranes are typically used for material handling, storage, and retrieval tasks.

Overhead cranes and bridge cranes are widely used in manufacturing and warehouse operations due to their high precision and efficiency.
Average lifting capacities range from 1 to 50 tons, with some heavy-duty models capable of lifting up to 100 tons.
In addition to lifting capacities, crane configuration options often include crane height, span length, and trolley travel.

Manufacturing and warehouse cranes require precise planning and operation to ensure efficient material handling and minimize operational disruptions.

Safety Considerations and Regulations

The operation and maintenance of crane machine are critical to ensuring the safety of users, personnel, and bystanders. Proper usage and regular maintenance can help minimize risks associated with crane malfunctions or accidents. Regulatory frameworks, such as OSHA guidelines, set and enforce strict standards for crane operation to prevent harm or injury.

Importance of Proper Crane Operation

Proper crane operation involves adhering to manufacturer instructions, operating at safe load capacities, and following established safety protocols. Operators must be trained and certified to handle cranes effectively and ensure that users understand and follow the guidelines. Regular inspections and maintenance help identify potential issues before they become hazardous. Furthermore, maintaining accurate records of crane operations and maintenance can aid in identifying patterns or trends that could indicate a need for improvement.

Crane Regulations and Standards

Relevant regulations and standards for cranes include:

OSHA Guidelines: The Occupational Safety and Health Administration (OSHA) sets and enforces workplace safety standards, including those specific to cranes. These guidelines address critical aspects of crane operation, maintenance, and safety procedures.
AASHTO/ANSI B30 Specifications: The American Association of State Highway and Transportation Officials (AASHTO) and the American National Standards Institute (ANSI) B30 specifications address standards for design, construction, operation, and maintenance of mobile cranes.
ASTM F 855-12: The American Society for Testing and Materials (ASTM) F 855-12 provides standard specifications for safety signs for cranes and other lifting devices.
ISO 4306-1:2016: The International Organization for Standardization (ISO) 4306-1:2016 establishes requirements for safety signs on cranes and other lifting equipment.

Regulatory Framework for Crane Operations

Regulatory frameworks for crane operations vary based on location and industry, but key areas of focus typically include:

Load capacity and weight limits
Operator training and certification
Maintenance and inspection requirements
Safe working loads and limits
Proximity and obstruction hazards

Maintenance and Inspection

Regular maintenance and inspection of crane machine are essential to ensure ongoing safety and efficiency. Key aspects of maintenance include:

Cable replacements and inspections
Hoist and winch maintenance
Drum and rope inspections
Component lubrication and greasing

Regularly updated records of crane operations, maintenance, and inspections can help identify opportunities for improvement and support safety efforts.

Environmental Concerns and Sustainability

As crane machines and operations continue to grow in number and scope, environmental concerns have gained increasing attention in recent years. The impact of crane machines on the environment, from energy consumption to waste disposal, requires thorough assessment to minimize ecological footprint. In this section, we will discuss the environmental impact of crane machines and operations, exploring ways cranes can be designed and operated to reduce their ecological footprint.

Energy Consumption and Greenhouse Gas Emissions

Crane machines are significant energy consumers, primarily due to the power requirements of their motors and pumps. A substantial amount of greenhouse gas emissions arise from the energy generation processes, directly influencing environmental sustainability. Various measures can be implemented to reduce energy consumption and emissions:

Solar-powered or wind-powered cranes: Installing renewable energy sources to power crane operations could significantly reduce the carbon footprint.
Energy-efficient motors: Upgrading crane motors to energy-efficient models can lead to a noticeable reduction in energy consumption.
Optimization of crane operation: Implementing smart monitoring systems and optimizing crane operation schedules can minimize energy usage and related emissions.
Electric or hybrid cranes: Transitioning to electric or hybrid cranes can reduce the reliance on fossil fuels and decrease greenhouse gas emissions.

Resource Depletion and Waste Management

Crane operations can also lead to significant resource depletion and waste generation. The construction sector, closely related to crane operations, is estimated to contribute up to 30% of global carbon emissions. Strategies to minimize resource depletion and waste include:

Sustainable materials: Using sustainable materials for crane construction and promoting responsible waste management practices can mitigate the impact of crane operations.
Resource-efficient designs: Designing cranes with resource efficiency in mind can lead to reduced material waste and lower environmental impacts.
Waste reduction and recycling programs: Implementing effective waste reduction and recycling programs can minimize landfill waste and preserve natural resources.

Water Conservation and Pollution Prevention

Saltwater and Freshwater Conservation

Crane operations involve water consumption, which can strain local water resources, especially in arid or semi-arid regions. Measures to conserve water and prevent water pollution include:

Air-cooled systems: Implementing air-cooled systems instead of traditional water-cooled systems can significantly reduce water consumption.
Water recycling and reuse: Developing closed-loop systems to recycle and reuse water can minimize wastewater production.
Water-efficient designs: Designing cranes with water efficiency in mind can lead to reduced water usage and environmental impacts.

Waste Reduction and Proper Disposal

Crane operations generate a substantial amount of waste, from materials packaging to machinery maintenance byproducts. Strategies to minimize waste and ensure proper disposal include:

Waste reduction programs: Implementing waste reduction programs can minimize landfill waste and preserve natural resources.
Proper disposal methods: Ensuring that waste is disposed of properly and in compliance with regional regulations can prevent environmental pollution and degradation.
Recycling and reusing materials: Developing recycling and reusing programs for crane-related materials can further minimize waste and environmental impacts.

Sustainable Operation and Maintenance Practices

Implementing sustainable operation and maintenance practices is crucial to reducing the environmental impact of crane machinery. Techniques include:

Regular maintenance schedules: Regular maintenance can extend machine lifespan, reduce waste, and minimize the need for resource-intensive replacements.

li> Energy-efficient operation modes: Allowing cranes to operate in energy-efficient modes, such as variable speed drives, can reduce energy consumption.

Smart maintenance scheduling: Implementing smart scheduling technologies can help prevent unnecessary maintenance and minimize machine downtime.

Industry-Wide Collaboration and Regulatory Compliance

Collaboration among crane manufacturers, operators, and regulatory bodies is key to achieving sustainable crane operations. Strategies include:

Industry standards and best practices: Establishing industry standards and best practices for crane operation, maintenance, and energy efficiency can promote sustainability and minimize environmental impacts.
Regulatory compliance: Ensuring compliance with regional regulations and standards can prevent environmental degradation and ensure safe operation.
Education and training: Providing education and training to crane operators and maintenance personnel can foster a culture of sustainability within the industry.

Design and Manufacturing of Crane Machines

The design and manufacturing of crane machines involve a combination of engineering, technology, and craftsmanship. Crane machines are complex devices that require precise planning, design, and execution to ensure their efficiency, reliability, and safety. The process begins with a thorough analysis of the machine’s requirements, including its intended use, load capacity, and environmental conditions.

Engineering and Design Process

The engineering and design process of creating crane machines involves several stages, including conceptualization, design optimization, and detailed design. The process begins with conceptualization, where engineers and designers come up with a basic idea of the machine’s layout, configuration, and functionality. This is followed by design optimization, where simulations and analyses are performed to optimize the machine’s performance, energy efficiency, and cost-effectiveness.

Design optimization involves using computer-aided design (CAD) software, finite element analysis (FEA), and computational fluid dynamics (CFD) to simulate different scenarios and predict the machine’s behavior under various conditions. The results of these analyses are used to refine the design, making adjustments to the machine’s configuration, dimensions, and material selection.

Design optimization is a critical stage in the design process, as it helps to identify potential issues and improve the machine’s overall performance and efficiency.

Materials and Techniques Used

Crane machines are typically made from high-strength, low-alloy (HSLA) steel, aluminum alloys, or fiber-reinforced polymers (FRPs), which provide the necessary strength, durability, and corrosion resistance. The selection of materials depends on the machine’s intended application, operating conditions, and environmental requirements.

In addition to materials selection, crane machines employ various techniques to ensure their reliability and safety, including:

Surface treatment and coatings

Advanced surface treatment and coatings, such as chrome plating, anodizing, and powder coating, are used to enhance the machine’s corrosion resistance and wear resistance.
Heat treatment and hardening, Types of crane machines

Heat treatment and hardening techniques, such as quenching and tempering, are used to improve the machine’s strength and toughness.
Maintenance and lubrication

Regular maintenance and lubrication schedules are implemented to ensure the machine’s components remain in good working condition and to minimize wear and tear.

Manufacturing Techniques

Crane machines are typically manufactured using computer-controlled machine tools, such as Computer Numerical Control (CNC) machines, which enable high precision and accuracy. Other manufacturing techniques, such as 3D printing and laser cutting, are also employed to produce complex geometries and minimize waste.

Forging and machining

Forging and machining techniques are used to produce high-strength components, such as shafts and gears, with precise tolerances.
Welding and assembly

Welding and assembly techniques are used to join various components and sub-assemblies, ensuring a strong and durable structure.

Testing and Validation

Once the machine is assembled, it undergoes rigorous testing and validation procedures to ensure its performance, reliability, and safety. This includes load testing, stress testing, and performance testing under various environmental conditions.

Testing and validation are critical stages in the manufacturing process, as they help identify potential issues and ensure the machine’s compliance with regulatory requirements and industry standards.

Modern Technology in Crane Machines

Modern crane machines have witnessed significant advancements in technology, incorporating innovative systems and materials to enhance performance, efficiency, and safety. The integration of modern technologies has revolutionized the crane industry, enabling cranes to operate with precision, accuracy, and reliability.

Hydraulic Systems

Modern crane machines utilize advanced hydraulic systems, which provide improved performance, reduced energy consumption, and enhanced durability. Hydraulic systems enable precise control over the crane’s movements, allowing for smooth and efficient operation.

Variable hydraulic pressure control systems allow for precise control over the crane’s movements, ensuring smooth and efficient operation.
Servo-hydraulic systems combine the benefits of hydraulic and electric systems, providing improved performance, efficiency, and reliability.
Advanced hydraulic components, such as variable displacement pumps and motors, enable improved performance and reduced energy consumption.

Control Systems

Modern crane machines employ advanced control systems, which enable precise control over the crane’s movements and operations. These systems use sensors, actuators, and software to monitor and regulate the crane’s performance.

CANBus and Ethernet-based control systems enable real-time communication and control between the crane’s components, ensuring smooth and efficient operation.
Advanced algorithms and software enable precise control over the crane’s movements, ensuring accurate and efficient operation.
Touchscreen interfaces and digital displays provide operators with real-time information and feedback, enhancing safety and productivity.

Sensors and Monitoring Systems

Modern crane machines utilize advanced sensors and monitoring systems to ensure safe and efficient operation. These systems provide real-time information and feedback to operators and maintenance personnel, enabling proactive maintenance and repair.

Inertial measurement units (IMUs) and gyroscopes provide accurate data on the crane’s position, orientation, and movement.
Accelerometers and vibration sensors monitor the crane’s movement and vibrations, enabling early detection of potential issues.
Temperature and oil level sensors monitor the crane’s mechanical and hydraulic systems, ensuring safe and efficient operation.

Energy Efficiency Innovations

Modern crane machines employ energy efficiency innovations, which reduce energy consumption and minimize environmental impact. These innovations include regenerative braking, energy storage systems, and advanced power management systems.

Regenerative braking systems capture and reuse energy during braking and idling phases, reducing energy consumption and emissions.
Energy storage systems, such as batteries and supercapacitors, provide power backup and reduce energy consumption during operation.
Advanced power management systems optimize energy consumption and reduce waste, ensuring efficient operation and minimal environmental impact.

Future Developments and Trends

The field of crane machine design and operation is expected to undergo significant changes in the near future, driven by advances in technology and changing industry needs. Emerging trends and technologies will shape the development of crane machines, leading to improved efficiency, safety, and productivity.

Automation and Artificial Intelligence in Crane Operations

The integration of automation and artificial intelligence (AI) in crane operations is gaining momentum, promising to revolutionize the industry. AI-powered systems can analyze data from various sensors and cameras, enabling crane operators to make more informed decisions and improve safety.

Automation in crane operations can take several forms, including:

Autonomous crane systems, where the crane operates without human intervention, following pre-programmed routes and avoiding obstacles.
AI-powered predictive maintenance, which uses machine learning algorithms to predict and prevent crane downtime.
Real-time data analytics, providing operators with insights into crane performance, load dynamics, and potential safety hazards.

AI can also enhance the efficiency of crane operations by:

Optimizing crane deployment and positioning, reducing setup time and increasing productivity.
Automating tasks, such as load calculation and hoist rope spooling, freeing up operators to focus on more critical tasks.
Providing real-time support to operators, helping them navigate complex tasks and reduce errors.

The adoption of automation and AI in crane operations will require significant investment in training and workforce development, as well as changes to regulatory frameworks and industry standards.

Integration with Other Technologies

Crane machines are increasingly being integrated with other technologies, such as the Internet of Things (IoT), blockchain, and 5G networks. These integrations will enable:

Real-time monitoring and control of crane operations, remotely and in real-time.
Improved data analytics and insights, driving decision-making and optimization of crane operations.
Enhanced safety and security features, including secure data transmission and authentication.

The integration of these technologies will create new opportunities for crane machine design and operation, driving innovation and improving efficiency, safety, and productivity.

Sustainability and Environmental Considerations

As concern for the environment and sustainability grows, crane machines are being designed to minimize their ecological footprint. This includes:

Energy-efficient motors and power systems, reducing energy consumption and greenhouse gas emissions.
Recyclable and reusable materials in crane design and construction.
Water conservation measures, such as rainwater harvesting and greywater reuse.

Crane manufacturers are also exploring new energy sources, such as solar and wind power, to power crane operations.

By 2030, the global crane market is expected to reach $10.3 billion, driven by increasing demand for automation and AI in crane operations.

The integration of automation, AI, and other technologies, as well as a focus on sustainability and environmental considerations, will shape the future of crane machine design and operation. As the industry continues to evolve, it will be essential to balance technological innovation with regulatory compliance, industry standards, and workforce development.

Outcome Summary: Types Of Crane Machines

Types of crane machines have evolved over time to incorporate advanced technologies such as hydraulic systems, control systems, sensors and monitoring systems, and energy efficiency innovations. Understanding the different types of crane machines and their applications is essential for ensuring safe and efficient operations.

Clarifying Questions

What are the main types of crane machines used in construction?

Mobile cranes, tower cranes, crawler cranes, and rough-terrain cranes are the main types of crane machines used in construction.

What is the importance of crane machines in manufacturing?

Crane machines play a crucial role in manufacturing by enabling the lifting and moving of heavy loads, machinery, and equipment.

Are crane machines environmentally friendly?

Crane machines can be designed and operated to reduce their ecological footprint by incorporating energy-efficient innovations and sustainable practices.
